That similarity causes real confusion during renovations, repairs, and new specifications. Mixing up EIFS, synthetic stucco, three-coat stucco, and one-coat stucco isn't just a labeling issue. These systems manage water, weight, and insulation in fundamentally different ways.
This article breaks down what's actually inside an insulated stucco wall, how it stacks up against other stucco types, where the performance benefits and risks sit, and what to look for in a qualified commercial exterior wall contractor.
Key Takeaways
- Insulated stucco (EIFS) delivers continuous exterior insulation with a wide range of architectural finishes.
- Choose EIFS, three-coat, or one-coat stucco based on weight, drainage needs, and install complexity.
- Flashing, air/water-resistive barriers, drainage paths, and substrate prep drive performance more than finish choice.
- Manufacturer-compliant installation by a certified contractor matters as much as system selection.
What Are Insulated Stucco Systems?
"Insulated stucco" almost always refers to EIFS: a non-load-bearing exterior cladding built around insulation board, a reinforced base coat, and a textured finish coat. The EIFS Industry Members Association defines it as a complete wall cladding system, distinct from Portland-cement stucco, even when the surface texture looks similar.
That distinction matters because EIFS isn't a coating applied over a finished wall. It's a full assembly that interacts with the substrate, the building's air and water control layers, window and door openings, and every transition to adjacent materials.
The Typical Layer Sequence
A drainable EIFS assembly, built from the substrate outward, generally includes:
- Substrate and sheathing, prepared with an air- and water-resistive barrier (AWRB)
- Insulation board (EPS or another approved rigid insulation), attached with adhesive or mechanically fastened
- Reinforcing mesh embedded in a base coat for impact resistance and crack control
- Textured finish coat, typically acrylic-based, in the specified color and texture
Every component should come from—and be installed according to—the selected manufacturer's tested assembly. Mixing products across manufacturers without approval can void warranties and compromise performance.
Barrier EIFS vs. Drainage EIFS
Older "barrier" EIFS relies entirely on a sealed exterior surface to keep water out. If a joint or penetration fails, there's nowhere for that water to go. Modern EIFS with drainage adds a water-resistive barrier, a drainage space behind the insulation, flashing, and weep details so incidental moisture exits the wall instead of getting trapped.
This distinction is critical during renovation or repair work. Assuming a wall is drainage-type EIFS when it's actually older barrier EIFS can lead to repair decisions that trap moisture rather than release it.
Performance and Code Requirements
Beyond drainage design, insulation performance varies by product. EPS board data from one major supplier shows R-values ranging from roughly 3.85 to 4.17 per inch depending on EPS grade and test temperature. There is no single universal R-value for every EIFS product.
The 2024 IBC addresses EIFS under Chapter 14, Section 1407, and requires drainable EIFS to meet a 90% average drainage efficiency standard under ASTM E2273 for specified framed Type V residential occupancies. Code pathways vary by project type, so check the governing code and the specific assembly together—don't assume one path fits every job.
How Insulated Stucco Compares With Other Stucco Systems
EIFS, three-coat stucco, and one-coat stucco can look nearly identical once finished. Their composition, weight, and water-management strategy are not the same.

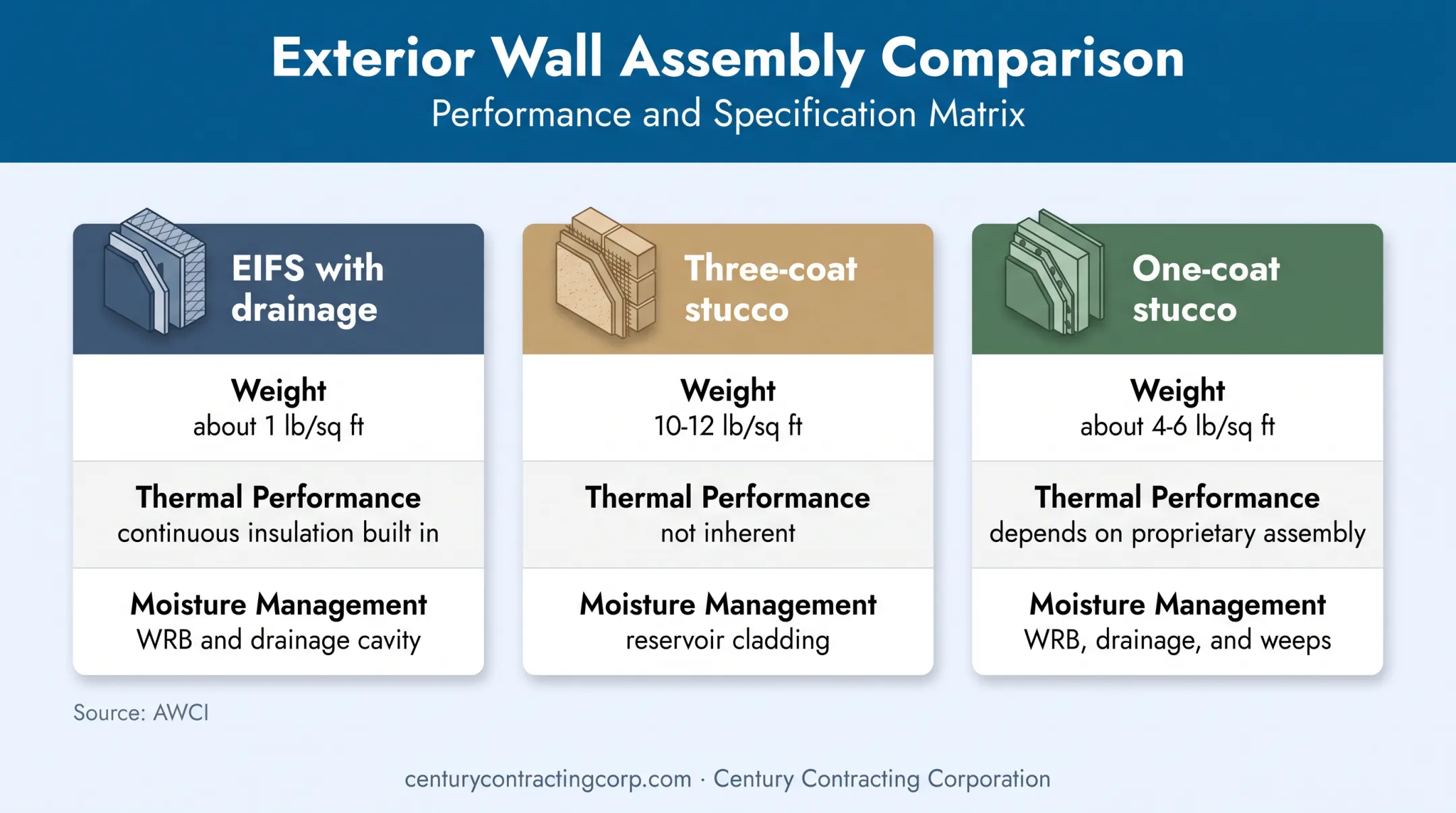

| Assembly | Composition | Typical Weight | Insulation | Water Management |
|---|---|---|---|---|
| EIFS with drainage | Insulation board, mesh-reinforced base coat, acrylic finish | About 1 lb/sq ft | Continuous insulation built in | WRB and drainage cavity behind insulation route out incidental water |
| Three-coat stucco | Portland-cement scratch, brown, and finish coats over lath | 10–12 lb/sq ft | Not inherent (added separately if specified) | Reservoir cladding; absorbs and dries, needs WRB and flashing |
| One-coat stucco | Proprietary fiber-reinforced cementitious base plus finish | About 4–6 lb/sq ft | Depends on the specific proprietary assembly | Needs correctly lapped WRB, drainage, and weeps |
These figures come from the Association of the Wall and Ceiling Industry (AWCI) comparison of stucco and EIFS fundamentals. Continuous insulation is automatic with EIFS but optional with traditional stucco.
Three-coat stucco follows ASTM C926, applying scratch, brown, and finish coats over lath or an approved substrate. One-coat stucco uses a proprietary base system, often 3/8 to 1/2 inch thick, with manufacturer-specific detailing that varies by product line.
You can design exterior insulation into a traditional stucco wall, but it is a separate design decision—not a built-in feature the way it is with EIFS.
Moisture handling differs by system:
- Traditional stucco absorbs and dries water (a reservoir approach) and still needs a WRB and flashing
- EIFS performance depends on barrier vs. drainage type, plus correct transitions and manufacturer-compliant detailing at every penetration
Performance Benefits and Limitations
Continuous exterior insulation reduces thermal bridging, which is where EIFS earns its energy reputation. Oak Ridge National Laboratory's whole-wall modeling of a steel-stud wall assembly showed effective R-value increasing from R-6.1 to R-9.5 when 1 inch of exterior EPS was added to an R-11 cavity-insulated wall.
That figure is a modeled generic wall comparison, not a measured EIFS building energy bill. Still, it demonstrates the mechanism clearly.
Design and Weight Advantages
EIFS gives architects flexibility that heavier claddings can't match:
- Lightweight assembly reduces structural load, useful on light-gauge framing and renovation projects
- Supports curved details, decorative trim profiles, and custom shapes
- Nearly unlimited color and texture options
- Pairs well with stone, wall panels, and other complementary materials
That lighter weight, roughly 1 lb per square foot compared to 10-12 lb for three-coat stucco, can be the deciding factor on retrofit projects where the existing structure wasn't designed for heavier cladding.
Where Risk Enters the Picture
EIFS rewards careful detailing and punishes shortcuts. Common risk factors include:
- Sealant joints and flashing that weren't installed to manufacturer specs
- Incompatible materials mixed across different manufacturer systems
- Substrate movement that wasn't accounted for in joint placement
- Impact damage at vulnerable points like entrances and corners
- Poor terminations at grade, roofline, or dissimilar materials
Impact resistance isn't uniform either. Mesh weight and base-coat thickness determine the ASTM E2486 classification (Standard, Medium, High, or Ultra High). High-traffic areas need heavier-duty detailing than upper-floor walls.

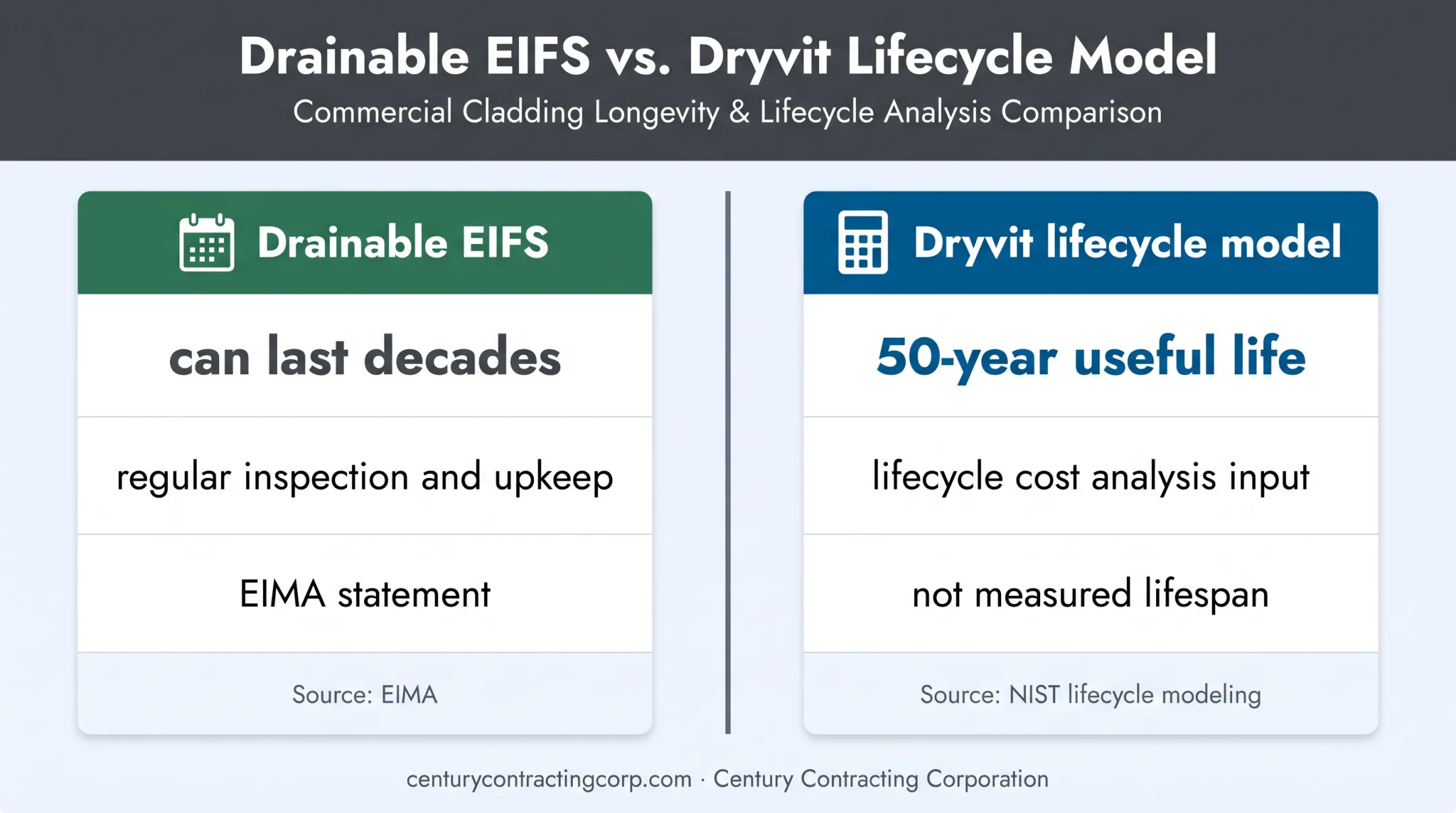

Longevity follows the same rule: detailing quality and maintenance drive real-world results. EIMA states that properly installed drainable EIFS can last decades with regular inspection and upkeep. NIST's lifecycle modeling assumes a 50-year useful life for certain Dryvit products.
That 50-year figure is a modeling input for lifecycle cost analysis, not a measured lifespan or a warranty promise. Treat manufacturer warranties and independently documented service life as two separate things.
Design, Moisture Management, and Installation Requirements
EIFS has to be designed as part of the entire building envelope, not bolted on after the wall design is locked in. Treating it as a decorative coating is where most moisture problems start.
Critical Detail Locations
Moisture management lives or dies at a handful of transitions. Get these wrong and water finds a path in:
- Windows and doors – continuous sill flashing with turned-up jambs; head flashing with end dams
- Rooflines and parapets – underlayment run up the wall behind metal flashing, plus diverters that move water off the assembly
- Wall base and grade – drainage track at grade with a free-draining bottom edge so the drainage plane can work
- Control and expansion joints – sized and placed for substrate movement
- Transitions to other claddings – compatible sealant joints, not improvised terminations
Each detail depends on air barriers, water-resistive barriers, correct flashing laps, backwrapping at insulation edges, and sealant joints set with closed-cell backer rod (not three-sided adhesion).
Terminology and exact detailing vary by manufacturer. What one system guide calls "backwrapping" may be specified differently in another, so the governing manufacturer's documentation is the final word.
Installation Sequence and Site Conditions

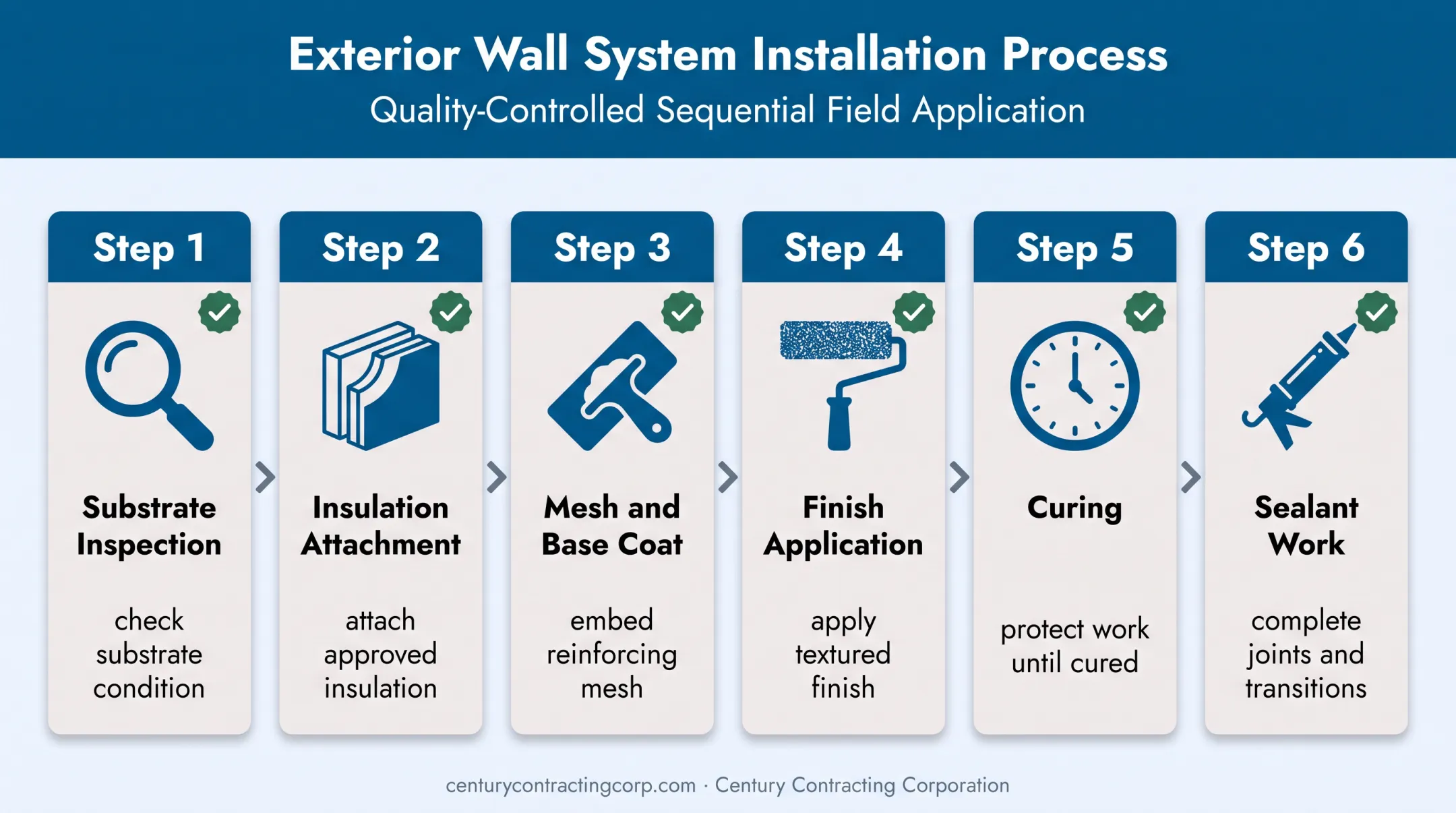

A typical installation moves through substrate inspection, insulation attachment, reinforcing mesh and base coat, finish application, curing, and sealant work, with quality checks at each stage. Site conditions directly affect outcomes:
- Temperature: many manufacturer instructions call for air and wall-surface temperatures between 40°F and 100°F, held for at least 24 hours after application
- Weather: wet application in rain is typically prohibited; protect fresh work until it cures
- Substrate moisture: damp or contaminated substrates raise the risk of adhesion failure and cracking
Project controls worth insisting on:
- Approved submittals and manufacturer-specific shop drawings
- Physical mock-ups and a compatible materials list
- Documented field inspections
- Sign-off on concealed work before the next layer covers it
Skipping documentation on concealed moisture-barrier work is one of the most common, and costly, mistakes on commercial projects.
Choosing the Right System and Qualified Installer
Selecting between EIFS, three-coat stucco, and one-coat stucco comes down to a handful of practical questions:
- What are the energy and code targets for this project?
- What's the substrate, and does it support the assembly weight?
- How tall is the building, and what's the wind/moisture exposure?
- What's the impact risk at grade level and high-traffic zones?
- What fire performance rating does the assembly need to meet?
- What's the schedule and budget, and how does the system integrate with adjacent envelope materials?
Once the system is chosen, the installer matters just as much as the product. When vetting a commercial exterior wall contractor, ask:
- Do they have documented experience with the specified manufacturer's brand? Not just EIFS in general, but the exact system.
- Are their mechanics trained or certified on that assembly, not just generally experienced with stucco?
- Can they provide references from comparable commercial projects in scale and complexity?
- What's their safety record and quality-control process for inspecting concealed work before covering it?
- What warranty terms do they offer, and are those terms specific to the installation or the materials?
Accountable project leadership, from estimating through punch-list completion, reduces the risk of gaps that cause callbacks. Those same checks—brand-specific experience, certified mechanics, references, QC, and clear warranty terms—are what separate a qualified exterior wall contractor from a general stucco crew.
Century Contracting Corporation, based in Lorton, Virginia, is a commercial exterior wall contractor offering EIFS, stucco, exterior wall panel, and air/weather barrier installation across the Mid-Atlantic.
Proof points that map to the questions above include:
- AWCI EIFSmart-certified workforce
- Manufacturer certifications with Dryvit, STO, Senergy, and Parex
- Class A license and a standard two-year installation warranty
- Project manager, superintendent, and foreman assigned on every job from mobilization through closeout
Teams weighing system selection or installer qualifications on a commercial project are welcome to reach out for a project-specific conversation.
Frequently Asked Questions
What are the differences between one-coat and three-coat stucco?
Three-coat stucco uses scratch, brown, and finish layers over lath, totaling roughly 7/8 inch thick and 10-12 lb/sq ft. One-coat stucco uses a thinner, proprietary basecoat system (often 3/8-1/2 inch) with manufacturer-specific detailing. Follow the specified system’s requirements rather than choosing by label alone.
What are the two types of stucco?
Stucco falls into cement-based traditional stucco and synthetic or polymer-modified systems. EIFS is a complete insulated cladding system, not simply another coat of cement stucco, even though its finish can look similar.
How do I know if my house has EIFS?
Look for a surface that feels slightly resilient when pressed, unusual wall thickness at window returns, and specific termination or drainage details at the base. Appearance alone isn’t definitive. Confirm with project records or a professional inspection.
Is stucco finish good for exterior walls?
Yes, when the assembly, substrate, drainage, flashing, and curing are handled correctly for the building's conditions. Suitability depends on matching the right system to the project, not on the finish alone.
What is a stucco facade?
A stucco facade refers to the visible exterior wall finish or cladding assembly. It's distinct from the underlying structural, insulation, air-barrier, and moisture-control layers that determine how well the wall actually performs.
How long does EIFS siding last?
Service life depends on system type, exposure, detailing quality, installation, and maintenance. Properly installed drainable EIFS often lasts decades when inspected and maintained; there is no single guaranteed lifespan.
