Commercial owners, architects, general contractors, and property managers typically have the same questions: How does EIFS actually manage moisture? What separates it from conventional stucco? And why does installation quality matter so much for long-term performance?
This guide covers EIFS components, benefits and limitations, barrier versus drainage systems, installation steps, maintenance practices, and how to vet a qualified commercial installer.
Key Takeaways
- EIFS is a full cladding system: insulation, mesh, base coat, and finish coat—not a single synthetic layer.
- Design drainage, flashing, sealants, and window/door transitions as part of the complete wall assembly.
- Continuous insulation and design flexibility pay off only when substrate, climate, and workmanship are right.
- Verify manufacturer specs and code compliance; hire experienced, certified EIFS applicators.
What Is EIFS?
EIFS stands for Exterior Insulation and Finish Systems. The nickname "synthetic stucco" captures how it looks but misses how it works.
According to the EIFS Industry Members Association (EIMA), EIFS is a non-load-bearing cladding. It pairs insulation board on a substrate with a reinforced base coat and a textured finish coat. Traditional cement-based stucco has no insulation layer and relies on lath and plaster rather than a reinforcing mesh system.
The Layered Assembly
Working from the substrate outward, a typical EIFS wall includes:
- Substrate — sheathing or masonry that must be sound, clean, dry, and compatible with the specified system
- Air or water-resistive barrier (AWRB) — a moisture-management layer installed over the substrate
- Drainage plane — present in EIFS with drainage, allowing incidental moisture to exit
- Insulation board — attached with adhesive, mechanical fasteners, or both
- Reinforcing mesh embedded in base coat — provides crack resistance and impact protection
- Finish coat — the final texture and color layer
- Flashings and sealants — manage water at joints, openings, and transitions

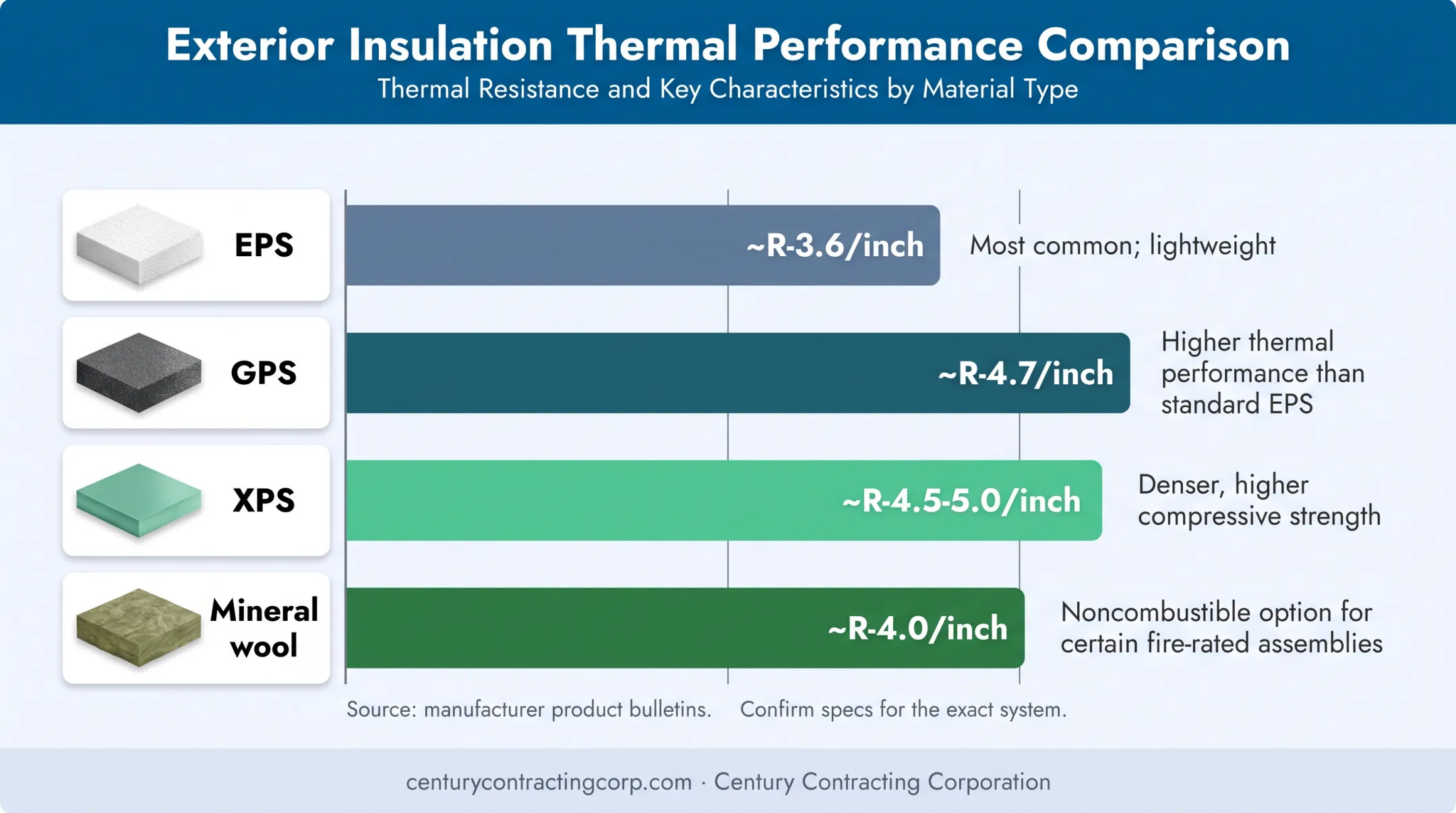

Insulation Options Vary by Performance
Not all EIFS insulation boards perform the same way. Four materials dominate the market:
| Insulation Type | Typical R-Value | Notes |
|---|---|---|
| EPS (expanded polystyrene) | ~R-3.6/inch | Most common; lightweight |
| GPS (graphite polystyrene) | ~R-4.7/inch | Higher thermal performance than standard EPS |
| XPS (extruded polystyrene) | ~R-4.5–5.0/inch | Denser, higher compressive strength |
| Mineral wool | ~R-4.0/inch | Noncombustible option for certain fire-rated assemblies |
These figures come from manufacturer product bulletins and vary by brand, so always confirm specs against the exact system being specified.
Insulation is only one part of the system decision. EIFS can be field-applied board by board or built into prefabricated wall panels off-site, depending on schedule and substrate.
Design options are broad: stucco-like textures, masonry profiles, reveals, and custom architectural shapes. Finishes, colors, and accessories still need to stay within one manufacturer's tested system. That is why Century Contracting installs Dryvit, STO, Senergy, Parex, and Finestone systems rather than mixing components across brands.
What Are the Benefits and Limitations of EIFS?
EIFS places insulation outside the structural frame, creating a continuous thermal layer that reduces the thermal bridging common in wood- or steel-framed walls. This supports modern energy-code goals around continuous insulation, though actual energy savings depend on climate, wall design, and building use rather than a single universal percentage.
Where EIFS Performs Well
- Lightweight construction — reduces structural load compared with brick or heavy masonry
- Design flexibility — achieves stucco-like, masonry-like, or highly detailed looks without added weight
- Crack resistance — reinforcing mesh in the base coat improves resistance to minor cracking
- Impact resistance options — heavier mesh packages can be specified for high-traffic areas
- Fire performance — mineral wool assemblies can be noncombustible; foam systems depend on the full tested wall assembly
Where EIFS Needs Attention
Moisture problems in EIFS walls rarely come from the system itself. They come from:
- Missing or poorly installed sealants at joints and transitions
- Discontinuous or incorrectly lapped flashing
- Blocked or absent drainage paths
- Incompatible repairs that trap water behind the finish
Windows, doors, rooflines, balconies, and parapets are the highest-risk zones because that's where the wall plane changes. These details require experienced applicators, not just correct materials.
EIFS vs. traditional stucco: EIFS adds continuous insulation and lightweight construction that hard-coat stucco doesn't provide. It also depends more heavily on correctly installed drainage and flashing details.
Traditional stucco is heavier and has no built-in insulation layer, but its moisture-management approach is simpler. Neither system is universally cheaper or more durable. Project type, substrate, and climate determine the better fit.

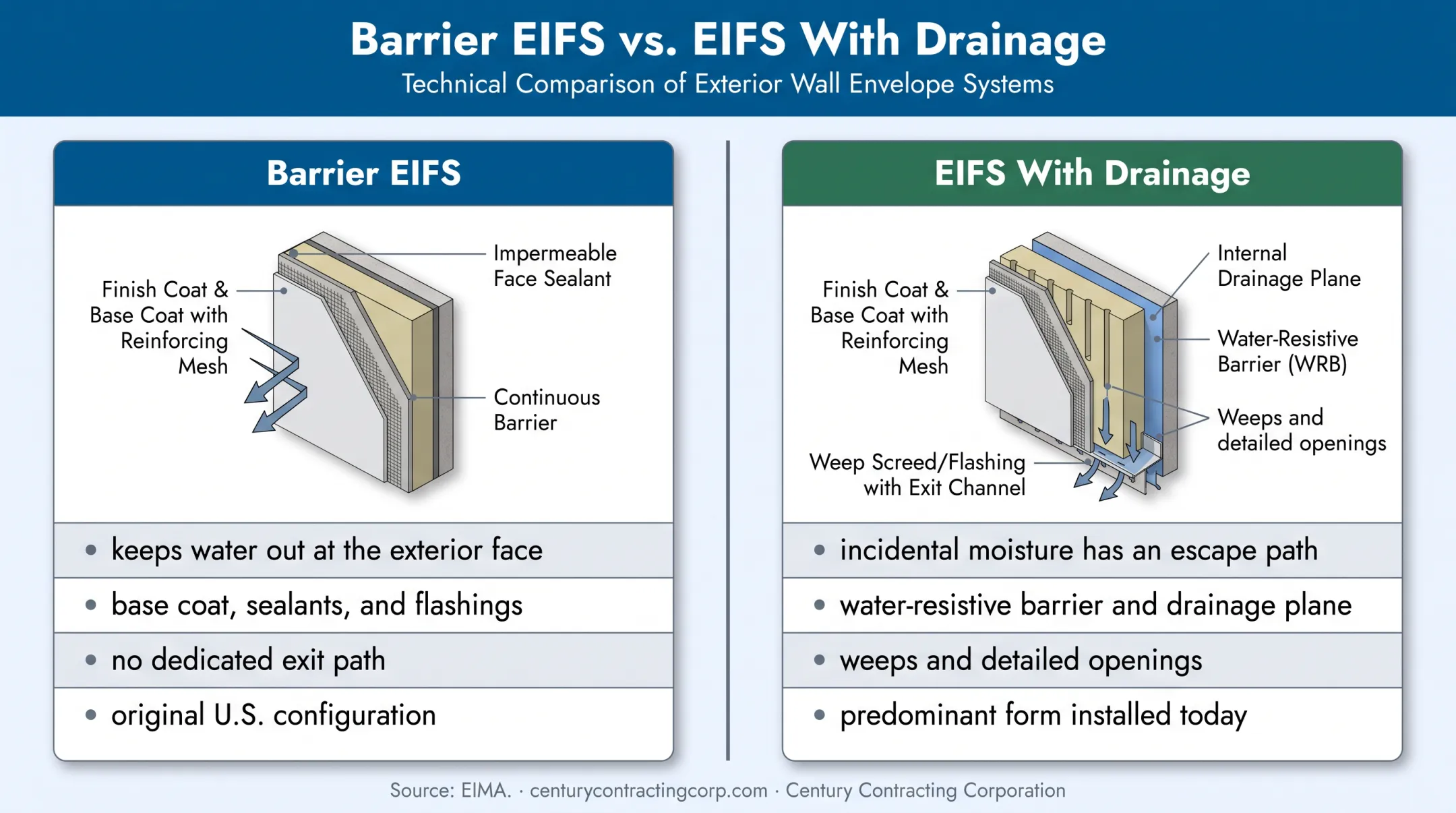

Barrier EIFS vs. Drainage EIFS
Two configurations exist, and the difference comes down to how each handles water that gets behind the finish coat.
Barrier (Non-Drainable) EIFS
Barrier EIFS relies on the base coat, sealants, and flashings at the exterior face to keep water out entirely. There's no dedicated path for moisture to exit if it gets past the finish. This was the original EIFS configuration used in the U.S.
EIFS With Drainage
Drainage EIFS adds a water-resistive barrier and a drainage plane between the barrier and the insulation board, along with weeps and properly detailed openings. If moisture gets in, it has somewhere to go. EIMA notes that EIFS with drainage is the predominant form installed today, though it stops short of citing an exact market-share figure.
What the Code Requires
The 2024 International Building Code mandates drainage EIFS on framed walls of Type V construction in Group R-1 through R-4 occupancies. Drainage systems must demonstrate at least 90% average drainage efficiency under ASTM E2273. That's a specific, limited mandate, not a blanket requirement for every commercial building type. Always verify which code edition your jurisdiction has adopted.
| Factor | Barrier EIFS | Drainage EIFS |
|---|---|---|
| Moisture strategy | Keeps water out at the face | Manages incidental moisture with an escape path |
| Key components | Base coat, sealants, flashing | AWRB, drainage plane, weeps, flashing |
| Detailing sensitivity | High: no backup if seals fail | Lower, but still requires correct flashing and weeps |
| Common use today | Limited, substrate-specific | Most new commercial and residential work |
Regardless of configuration, moisture problems concentrate at the same spots:
- Window and door openings
- Roof-to-wall intersections
- Control joints
- Penetrations for pipes or conduit
A missing sealant bead or a blocked weep can undermine an otherwise well-built wall. The right configuration depends on code requirements, substrate, climate, and building height. The design team should make that call with manufacturer input, not a generic rule of thumb.
How Is EIFS Installed?
EIFS installation must follow the selected manufacturer's tested assembly and the project specifications exactly. Swapping components or changing the sequence can affect both moisture performance and fire-test validity.

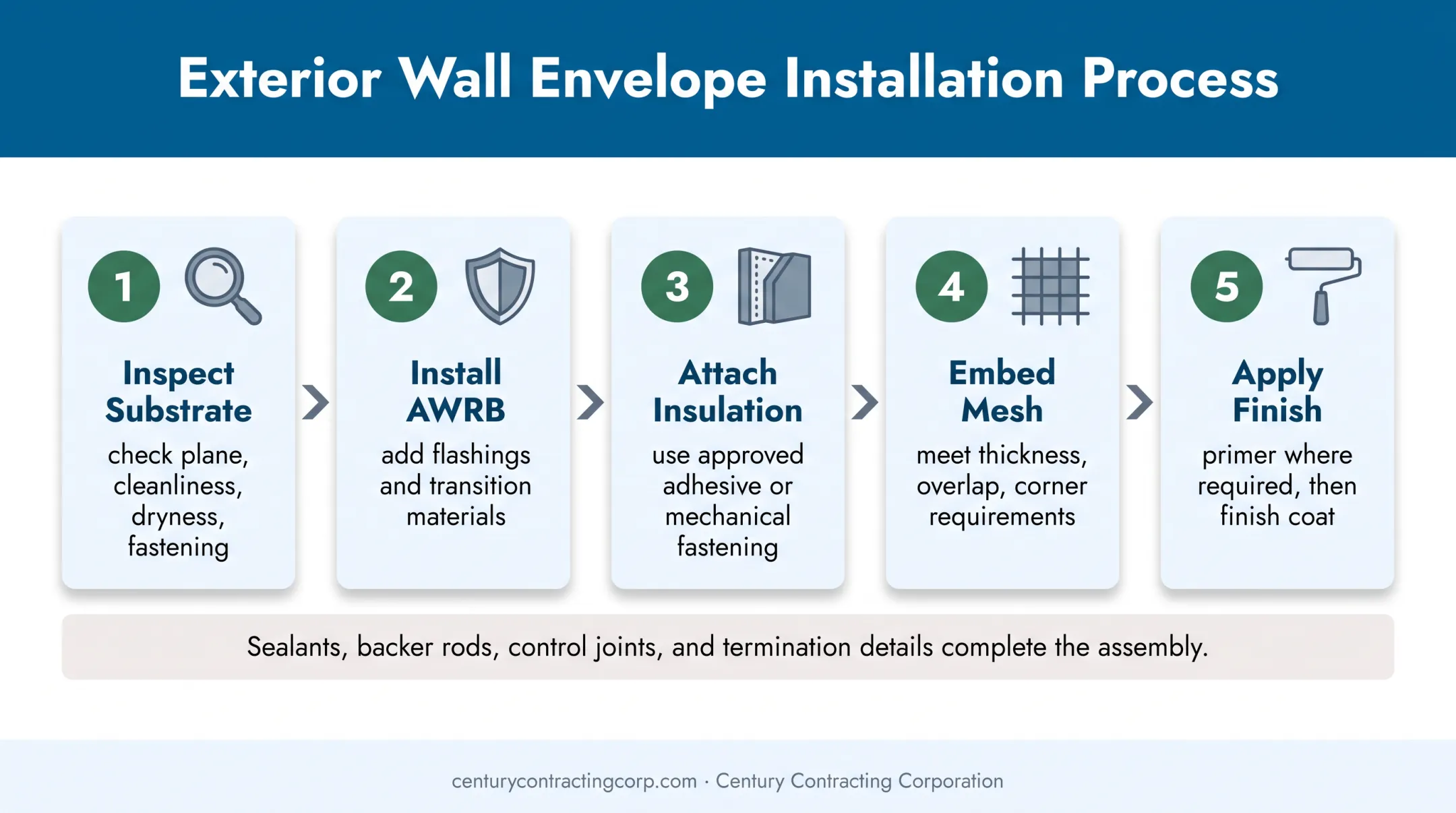

Typical Installation Sequence
- Inspect and prepare the substrate — check plane, cleanliness, dryness, fastening, and compatibility with the specified system
- Install the air or water-resistive barrier — along with flashings and transition materials at windows, doors, joints, and penetrations
- Attach insulation boards — using the approved adhesive and/or mechanical fastening pattern, maintaining required joints and clearances
- Embed reinforcing mesh in the base coat — at the specified thickness, overlap, and reinforcement around corners and openings
- Apply primer (where required) and finish coat — at the specified texture, color, and thickness, within acceptable weather conditions
Sealants, backer rods, control joints, and termination details complete the assembly and accommodate movement where EIFS meets dissimilar materials. That detail is easy to overlook, but it is critical for long-term performance.
Quality Control Matters as Much as Materials
Strong EIFS projects include:
- Submittal review against manufacturer instructions
- Mock-ups before full-scale installation
- Substrate and weather checks before each phase
- Hold-point inspections for concealed work (barriers, flashing, insulation attachment)
- Documentation of transitions and penetrations before they're covered
Century Contracting approaches commercial EIFS work this way, with AWCI EIFSmart-certified personnel and manufacturer-specific applicator credentials, including Parex Medallion and STO APW certifications.
The AWCI EIFSmart seal recognizes a contractor's workforce training and ethics standards. It does not certify any single completed wall. That distinction matters when vetting a contractor: the credential tells you about their people, not about your specific project's inspection record.
Each Century project is assigned a project manager, superintendent, and foreman who coordinate the work from mobilization through final cleanup.
EIFS Maintenance, Repairs, and Contractor Selection
Routine Maintenance
EIFS needs periodic attention rather than constant upkeep. Owners should schedule:
- Visual inspections of sealants, flashings, joints, and termination points
- Gentle cleaning matched to the finish type
- Prompt repair of impact damage or punctures before water gets in
If you pressure wash, manufacturers typically recommend 200–500 psi, with the wand held several feet from the surface.
Cosmetic Issues vs. Red Flags
Fading, surface dirt, and minor wear are cosmetic. These conditions need professional evaluation, not a quick patch:
- Recurring cracking, staining, or bulging
- Soft substrate areas
- Interior moisture or mold
- Failed sealants near windows and doors
Repair the Cause, Not Just the Symptom
Before patching, recoating, or replacing a section of EIFS, diagnose the underlying cause of damage. A sound repair plan should:
- Review original system documentation
- Confirm the manufacturer and installed components
- Avoid incompatible materials that could trap moisture or void system warranties
Choosing a Qualified EIFS Contractor
Ask prospective contractors:
- Do they have documented commercial EIFS experience and manufacturer training?
- Can they provide references for comparable building types?
- How will they handle substrate prep, drainage, inspections, and documentation?
- What's their warranty coverage and crew capacity for your timeline?
Those questions separate qualified EIFS installers from general painters or patch crews. Century Contracting Corporation has over 30 years in business, more than 3,000 completed projects, and an AWCI EIFSmart-certified workforce of over 100 workers across more than a dozen crews.
The company has installed EIFS on projects including Disney MGM Studios and the US Army Material Command, and provides a standard two-year installation warranty on its work.
Frequently Asked Questions
What are the steps involved in installing EIFS?
Installation generally follows substrate prep, water-resistive barrier and flashing, insulation attachment, mesh and base coat, then finish coat and sealants, with inspections throughout. The manufacturer's system instructions always control the exact sequence.
How can I tell if my stucco is EIFS?
Appearance alone isn't conclusive. Clues include a softer or hollow-feeling surface, noticeable system thickness, or specific trim details. A qualified professional inspection is the only reliable way to confirm before cutting, drilling, or recoating.
Can you paint over EIFS?
Compatible coatings can sometimes be used, but the surface needs evaluation first. Any coating must meet the manufacturer's requirements for adhesion, vapor permeability, and moisture performance to avoid trapping water behind the finish.
What is the most common EIFS?
EIFS with drainage is currently the predominant configuration installed in the U.S.. Availability and suitability still vary by project, climate, substrate, and applicable code requirements.
