That distinction matters because no exterior surface stays perfectly sealed forever. Water finds its way in at cracks, joints, window interfaces, and penetrations. Walls built on the assumption of a flawless exterior tend to fail eventually. Walls designed to manage water that does get in tend to hold up.
This guide covers how drainage systems work, the difference between drainable and face-sealed EIFS, what design and installation teams should check before work begins, and what warrants attention once a building is occupied.
Key Takeaways
- Drainage EIFS manages incidental moisture with a WRB, drainage space, flashing, and exterior outlets
- Drainage only works when every component is compatible, continuous, and installed to manufacturer specifications
- Qualified applicators and clean transitions matter as much as the specified system
- Confirm the exact assembly, manufacturer, substrate, and warranty terms before construction starts
What Is EIFS With Drainage?
EIFS is a multi-layer exterior wall cladding, not a single product. A typical assembly includes rigid insulation board, a reinforced base coat, and a textured or colored finish coat applied over prepared substrate.
EIFS with drainage adds a concealed water-management layer behind the insulation so incidental moisture has somewhere to go. Instead of accumulating against moisture-sensitive sheathing or framing, water moves downward and exits the wall.
What Each Layer Actually Does
Each component in the assembly has a specific job:
- Insulation board provides continuous thermal resistance and reduces thermal bridging
- Base coat and reinforcing mesh protect the insulation and create a durable substrate for the finish
- Finish coat adds texture, color, and weather resistance, but it is never the sole moisture barrier
That last point trips up a lot of people. The finish coat looks like the wall's defense against water. It isn't, at least not on its own.
EIMA's technical bulletin on EIFS with drainage describes the system as requiring an air/water-resistive barrier combined with a dedicated means of collecting and redirecting moisture that bypasses the exterior surface entirely.
Why This Matters for Commercial Buildings
Commercial projects often involve larger wall areas, more penetrations, and occupied interior spaces where concealed leakage causes real damage.
Building Science Corporation has documented that many early EIFS failures stemmed from rain entering assemblies with no drainage provision. The risk was highest where sheathing or framing couldn't tolerate sustained moisture exposure.
A complete EIFS-with-drainage assembly should be evaluated as a tested system, not a collection of interchangeable parts. Mixing components changes performance in ways that aren't always obvious until there's a leak.
How an EIFS Drainage System Works
Water finds a way behind the finish more often than anyone would like. The drainage system exists to manage that reality.

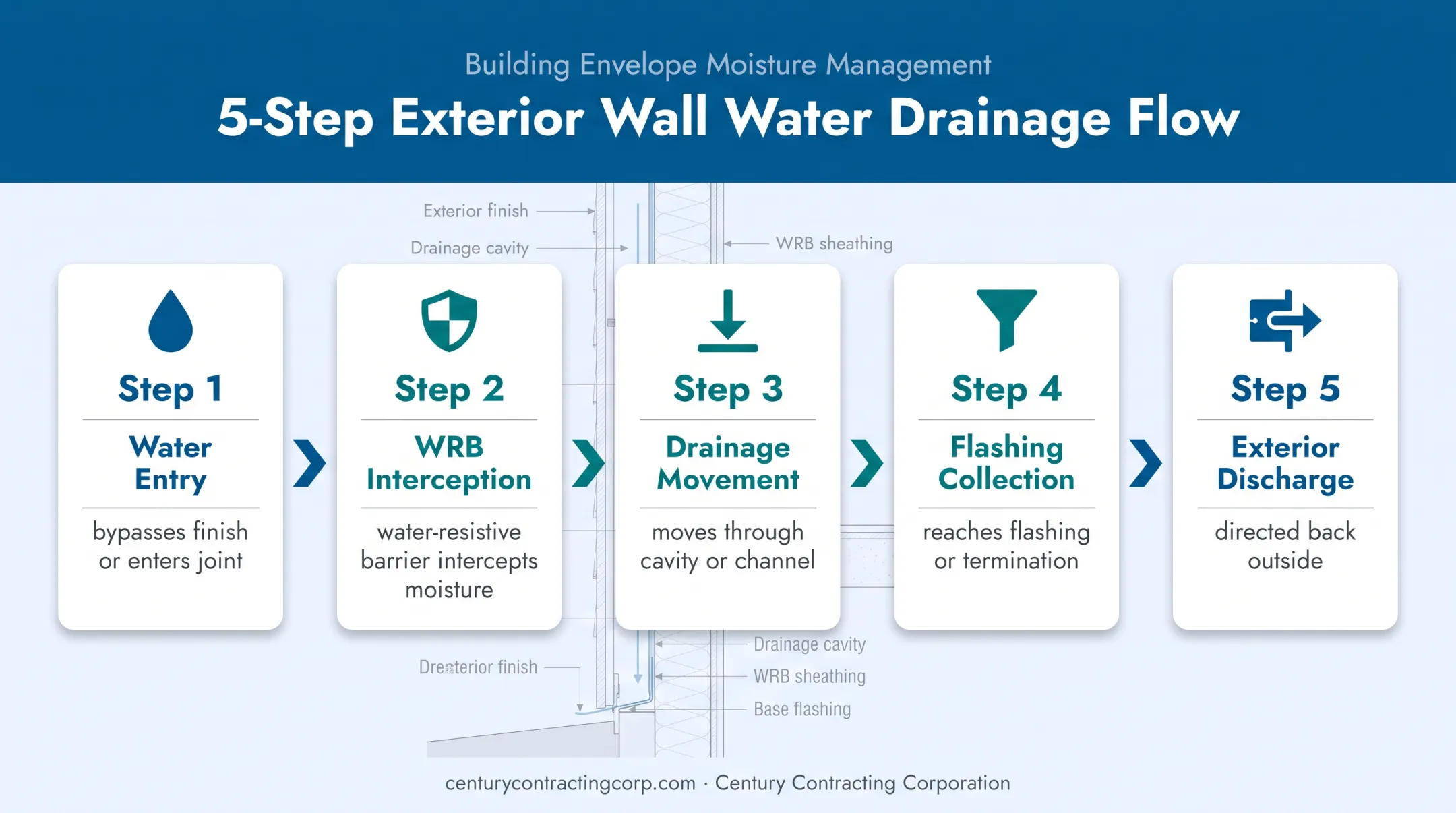

In sequence, water that bypasses the exterior finish or enters at a joint is intercepted by the water-resistive barrier. It moves through a designed cavity or channel, reaches flashing or a termination point, and is directed back outside.
Drainage Plane vs. Drainage Space
Crews often treat these terms as the same thing. They are not.
- Drainage plane: the continuous surface or layer (typically the water-resistive barrier) that controls water movement behind the cladding
- Drainage space: the actual gap or channel that allows water to travel downward toward an exit point
Building Science Corporation puts it plainly: a water-control layer alone can't drain anything without a gap. You need a continuous drainage plane paired with an actual drainage space, plus flashings to collect water and direct it out.
Common Drainage Methods
Manufacturers create this gap several ways:
- Drainage mats or open-mat mediums installed over the WRB
- Grooved or channeled insulation board
- Vertically oriented adhesive ribbons that create continuous channels
- Lath or spacer systems in specific configurations
The exact method varies by manufacturer and system. Dryvit's Outsulation Plus MD system, for example, specifies drainage strips at horizontal terminations and a perforated drainage track at the base of the wall. Always verify the approved method for the selected system rather than assuming one drainage approach works like another.
Why the Exit Path Matters More Than the Gap
A drainage cavity without a reliable exit is just a place for water to collect. Flashing and outlets at these locations are what move water outside:
- Windows and doors
- Floor lines and parapets
- Base-of-wall terminations
- Penetrations
Sealants, backwrapping, and control joints support this system—they do not replace it. Joints and penetrations need coordinated detailing in design and periodic maintenance after occupancy. Miss either step, and the path fails even when the cavity was built correctly.
Plane, space, and exit path have to work as one system, or water stays in the wall.
Types of EIFS Systems: Drainable vs. Face-Sealed
Not all EIFS is created equal, and the difference matters more than most people realize when they're comparing bids.
| Factor | Face-Sealed EIFS | EIFS With Drainage |
|---|---|---|
| Water-control strategy | Relies on exterior lamina and sealants | Provides a planned exit path for water |
| Primary moisture barrier | Exterior finish surface | Water-resistive barrier behind insulation |
| Drainage provision | None | Drainage space plus flashing and outlets |
| Sensitivity to workmanship | High | Lower, but still significant |
| Maintenance dependency | Heavy reliance on sealant upkeep | Reduced, but not eliminated |
Face-sealed systems depend on the exterior surface, sealants, and joints staying intact indefinitely. That's a tough standard to meet over decades of thermal movement, UV exposure, and building settlement.
Terminology Gets Murky
"EIFS," "barrier EIFS," "water-managed EIFS," and "EIFS with drainage" don't always mean the same thing across codes, manufacturers, and insurance documents. Identify the specific project system by its components and tested performance, not by whichever label appears on a spec sheet.
What Drives System Selection
Several project conditions push a design team toward one system over another:
- Climate and rain exposure intensity
- Building height and overall geometry
- Substrate type and condition
- Number and complexity of wall openings
- Exposure at balconies, projections, or other water-collecting features
- Adjacent cladding types and drying potential
The Code Context

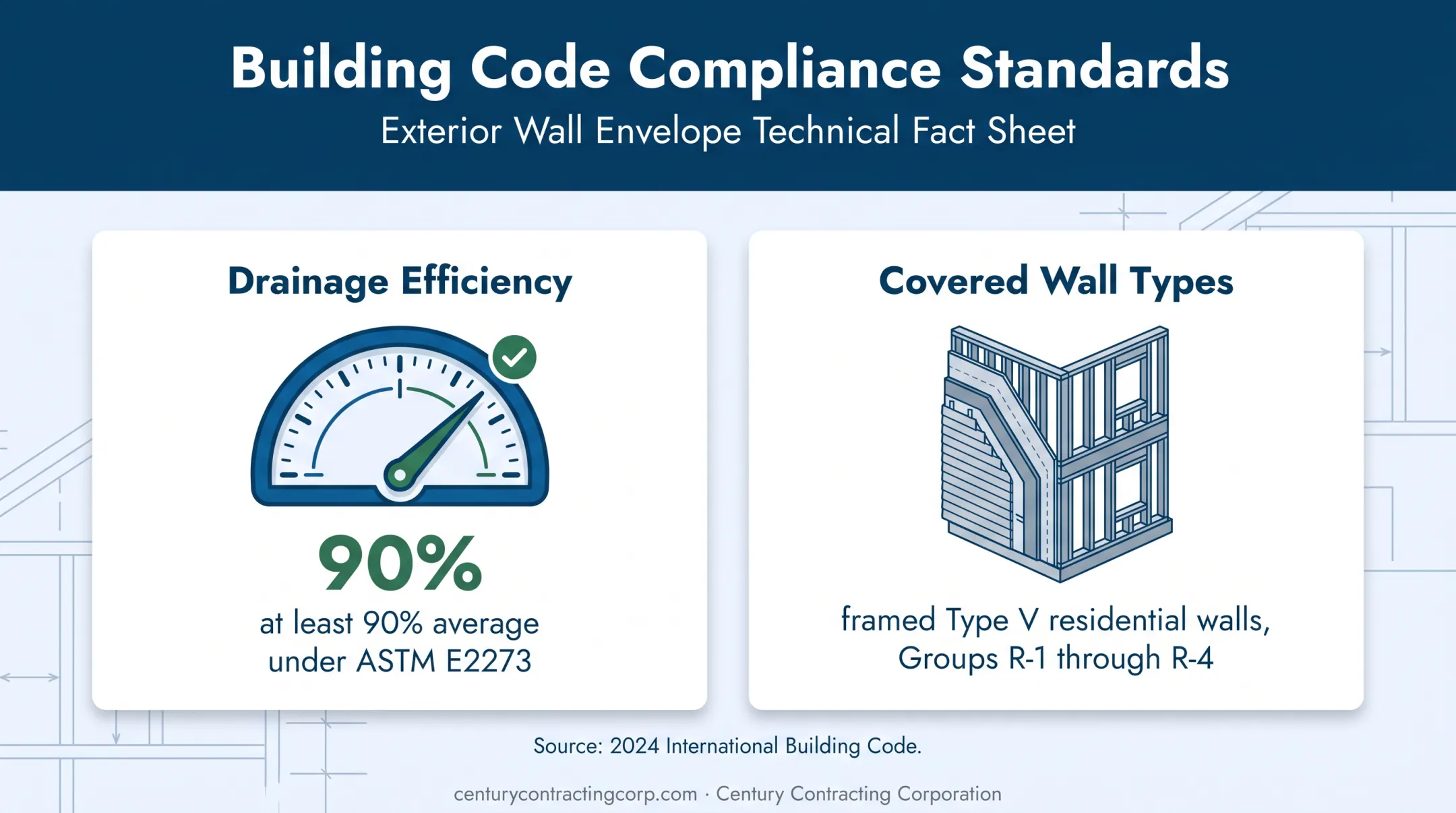

The 2024 International Building Code requires EIFS with drainage to average at least 90% drainage efficiency under ASTM E2273. It also mandates drainage systems on framed Type V residential-occupancy walls in Groups R-1 through R-4.
That mandate is narrower than many assume. Confirm the locally adopted code edition, occupancy classification, and construction type with a code consultant before treating any system as automatically compliant.
Drainable EIFS reduces risk. It does not eliminate the need for proper flashing, compatible materials, trained installation, and ongoing maintenance.
EIFS Drainage Design and Installation Best Practices
Good drainage design starts well before anyone picks up a trowel.
Preconstruction Checklist
Architects, general contractors, envelope consultants, manufacturers, and installers should confirm these items together:
- Selected system and approved components - exact manufacturer, product line, and drainage method
- Substrate compatibility - verified against manufacturer requirements
- Transition details - windows, doors, penetrations, roof edges, and dissimilar claddings
- Testing and inspection obligations - required tests, timing, and responsible parties
Don't Mix Manufacturer Components
Components from different EIFS manufacturers shouldn't be combined unless the full combination is specifically tested and approved. Mixing creates real risk:
- Material incompatibility that undermines performance
- Reduced drainage efficiency or thermal performance
- Voided warranties
- Fire-rating or code compliance failures
ANSI/EIMA 99A-2017, the industry's published installation standard, requires components to come from the selected system manufacturer or a recognized approved supplier, installed per that manufacturer's specific instructions.
Sequencing Protects the Drainage Path
A documented installation sequence keeps the water-resistive barrier, flashings, windows, drainage components, insulation, and finish coats from interrupting each other. Install things out of order, and you risk concealing incomplete work behind the next layer.
Why Crew Qualifications Matter
AWCI's EIFSmart certification sets specific thresholds:
- At least one certified management employee per location
- A certified foreman on every project
- A minimum of 40% certified EIFS personnel on each field crew
That's a meaningful bar. Check it against the actual crew assigned to the project, not just the contractor's general credentials.
Century Contracting Corporation, based in Lorton, Virginia, maintains an AWCI EIFSmart-certified workforce of more than 100 workers alongside certifications from Dryvit, STO, Senergy, and Parex. For general contractors and developers coordinating envelope scopes across the Mid-Atlantic, that combination of certified manpower and manufacturer-specific training is a practical factor when selecting a subcontractor for EIFS and air/weather barrier installation.
Inspection Before Concealment
Before any layer covers the drainage components, verify:
- Approved materials match submittals
- WRB and flashings are inspected and documented
- Drainage continuity is confirmed at all terminations
- Penetrations and transitions are photographed and recorded
Skipping this step means defects get buried under finish coats, sometimes for years, before they show up as a leak.
Inspection, Maintenance, and Repair Considerations
Some warning signs call for a full investigation rather than a cosmetic patch.
Warning Signs That Warrant Evaluation
Watch for these indicators:
- Recurring interior moisture or staining
- Musty odors without an obvious source
- Swollen or soft sheathing near wall penetrations
- Cracked or detached finish coat sections
- Failed or missing sealants at joints
- Damaged flashings at terminations
- Water collecting at base-of-wall or other terminations

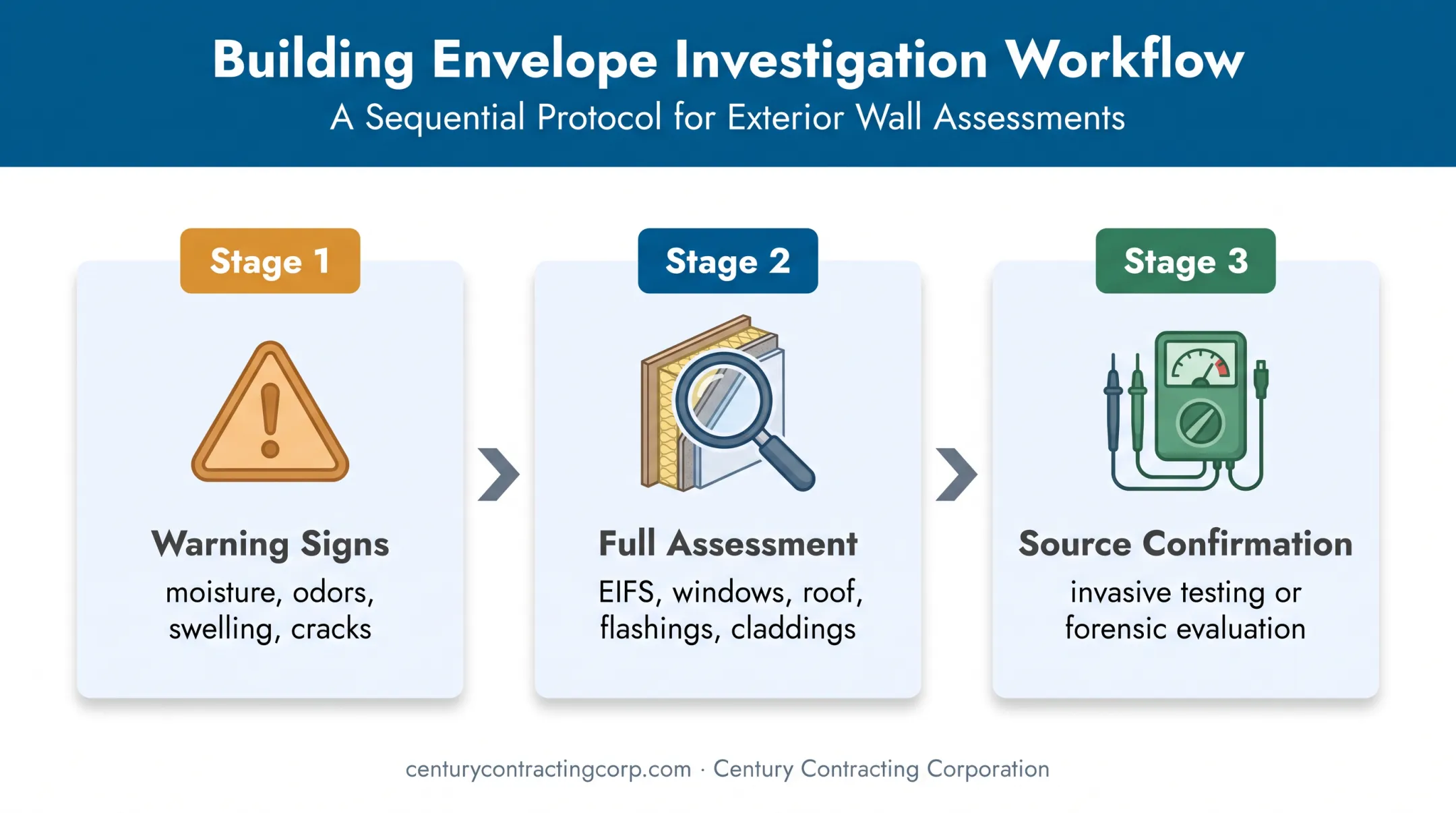

A proper investigation identifies the moisture source and assesses the full assembly, including EIFS layers, windows, roof interfaces, flashings, and adjacent claddings. Visual review can flag problems, but confirming the source sometimes requires invasive testing or a forensic evaluation by a building-envelope professional.
Routine Maintenance That Protects Drainage
Consistent upkeep protects the drainage path:
- Inspect sealants and joints on a regular schedule
- Keep drainage outlets clear of debris and landscaping buildup
- Address impact damage promptly rather than letting it sit
- Maintain roof and window interfaces where water concentrates
- Prevent unapproved attachments or penetrations through the finish
- Follow the manufacturer's cleaning and recoating guidance
A 2015 Construction Specifier article on EIFS maintenance called out unrepaired impact damage and missing or faulty sealants as common water-entry risks. Absent or misinstalled flashings ranked alongside them on existing buildings.
Why Surface Repairs Aren't Enough
Sealing a visible crack or applying a fresh finish coat might look like a fix. Often, it just conceals the actual drainage defect underneath. A proper repair restores the approved system detail, uses compatible materials, and re-establishes drainage continuity all the way to an exterior discharge point.
Before planning any commercial remediation, gather warranty documentation, prior maintenance records, and the proposed contractor's credentials. Drainage-system repairs need qualified crews with manufacturer certifications and documented EIFS drainage experience—not a cosmetic-only bid.
Frequently Asked Questions
What type of material is EIFS?
EIFS is a multi-layer exterior wall cladding system, not a single material. It typically combines rigid insulation board, a reinforced base coat, and a protective decorative finish coat into one assembly.
What are the different types of EIFS systems?
The two main categories are face-sealed (barrier) EIFS, which relies on the exterior surface and sealants, and EIFS with drainage, which adds a dedicated water-management layer. Specific drainage methods vary by manufacturer.
Is EIFS the same as stucco?
No. EIFS and traditional stucco are different assemblies with different materials, thermal properties, and installation methods. Both can achieve a similar textured look, but they require different water-management approaches.
What is a drainage plane?
A drainage plane is the continuous layer or surface behind the cladding, usually the water-resistive barrier, that helps direct incidental water toward an exterior outlet. It's distinct from the drainage space, which is the actual gap water travels through.
How does EIFS with drainage prevent moisture problems?
The system combines a water-resistive barrier, a drainage space or channel, flashing, and exterior terminations to limit inward water movement and direct it back out. Correct detailing and installation remain essential regardless of the system chosen.
When should a commercial EIFS wall be inspected or repaired?
Inspect after a suspected leak, visible damage, failed sealants, building alterations, or recurring moisture symptoms. Have a qualified EIFS or building-envelope professional evaluate the wall before selecting a repair approach.
