Introduction
External wall insulation and cladding often get treated as one line item on a spec sheet. They're not the same thing. Insulation improves a building's thermal performance. Cladding protects the wall and creates the visible façade.
Commercial projects run into trouble when these two elements aren't coordinated. Before the first panel goes up, teams need to address:
- Thermal bridging and moisture intrusion
- Fastener pull-out through foam sheathing
- Fire-test compliance and wind resistance
- Window and penetration transitions
This guide breaks down common exterior wall systems, explains how assembly layers work together, and outlines the installation details that separate a durable façade from a callback-prone one. We'll also cover when a project team needs qualified exterior wall expertise rather than a general trades crew.
Key Takeaways
- Exterior insulation builds thermal continuity; cladding delivers weather protection and finished appearance.
- Match the assembly to substrate, insulation thickness, cladding weight, drainage design, and code requirements.
- Coordinated detailing at windows, joints, and penetrations determines long-term performance.
- Specify compatible system components and certified installers to avoid premature envelope failure.
Understanding External Wall Insulation and Cladding
External wall insulation sits on the outside face of the structural wall, outside the studs or framing. This differs from cavity insulation, which fills the space between framing members and leaves thermal gaps wherever studs occur. The U.S. Department of Energy describes continuous insulation (CI) as an uninterrupted layer spanning structural supports, a definition the 2024 IECC builds into its commercial energy provisions.
Cladding is the exterior finish or rainscreen layer. It shields the wall from weather, impact, and UV exposure while establishing the building's appearance. Common commercial cladding types include:
- EIFS (Exterior Insulation and Finish Systems) finishes
- Stucco
- Stone or masonry veneer
- Metal, fiber-cement, or composite panels
- Wood and other approved finish materials
Insulation and cladding alone do not make a complete wall system. A durable assembly also depends on:
- A properly designed substrate
- Air barrier and water-resistive barrier (WRB)
- Drainage plane and flashing at every transition
- Correctly specified fasteners or adhesives
- Control joints and compatible sealants
A Basic Wall Section, Inside to Out
A typical exterior insulated wall reads like this, moving outward:
- Interior finish
- Structural framing or substrate
- Sheathing
- Air and water-resistive barrier
- Continuous exterior insulation
- Drainage or attachment layer
- Cladding or finish
Comparing Common Commercial Approaches
- EIFS: Can combine continuous insulation, reinforcement, and finish coat in one coordinated system. Drainable configurations also manage air, water, and drainage.
- Rainscreen assemblies: Place a cladding panel over a ventilated, drained cavity, with insulation and water-management layers behind it.
- Stucco, stone veneer, and metal panels: Each needs its own support, attachment, movement-joint, and moisture strategy.
You can't judge a wall's thermal or moisture performance by the cladding alone. The assembly behind it does the real work.
Benefits and Performance Considerations
Thermal Performance
Cavity-only insulation leaves conductive paths through every stud. A continuous exterior layer covers that framing and reduces thermal bridging, though penetrations and cladding attachments still create some heat loss. The 2024 IECC commercial energy efficiency chapter specifically addresses above-grade wall thermal bridges and compliance through assembly U-factors rather than nominal R-value alone.
There is no universal energy-savings percentage that applies to every building. Results depend on climate zone, assembly design, and how carefully the insulation layer is detailed around openings and connections.
Moisture Management
Insulation is not a drainage strategy. Moisture control depends on the full assembly working together, not on the insulation layer alone:
- WRB continuity
- Flashing at openings and transitions
- Drainage paths behind the cladding
- Compatible sealants at joints and penetrations
Drainable EIFS assemblies build a WRB and drainage channel into the system specifically for this reason. Stucco, by contrast, absorbs and later releases moisture as a reservoir cladding—meaning the assembly behind it still needs its own drying and drainage provisions.
Condensation risk shifts depending on where insulation sits within the wall and how thick it is. Project teams working on moisture-sensitive retrofits or unusual climate conditions should commission project-specific hygrothermal analysis rather than assuming a standard dew-point location.
Other Performance Factors
Beyond thermal and moisture behavior, system selection should weigh:
- Impact resistance for high-traffic or ground-floor applications
- Fire performance of the complete assembly
- Acoustic goals, particularly for multifamily or healthcare buildings
- Durability and maintenance expectations over a 20-30 year horizon
- Appearance and architectural intent
Sustainability follows the same whole-assembly logic. Avoid ranking any single cladding type as inherently "greenest"—service life, repairability, and environmental product declarations matter more than the finish category alone.
How Insulated Wall Assemblies Work
An insulated wall assembly is a layered system: structure, continuous insulation, weather and air control, and cladding. How those layers attach, how openings are detailed, and how the wall handles movement decide whether the assembly stays dry, efficient, and durable.

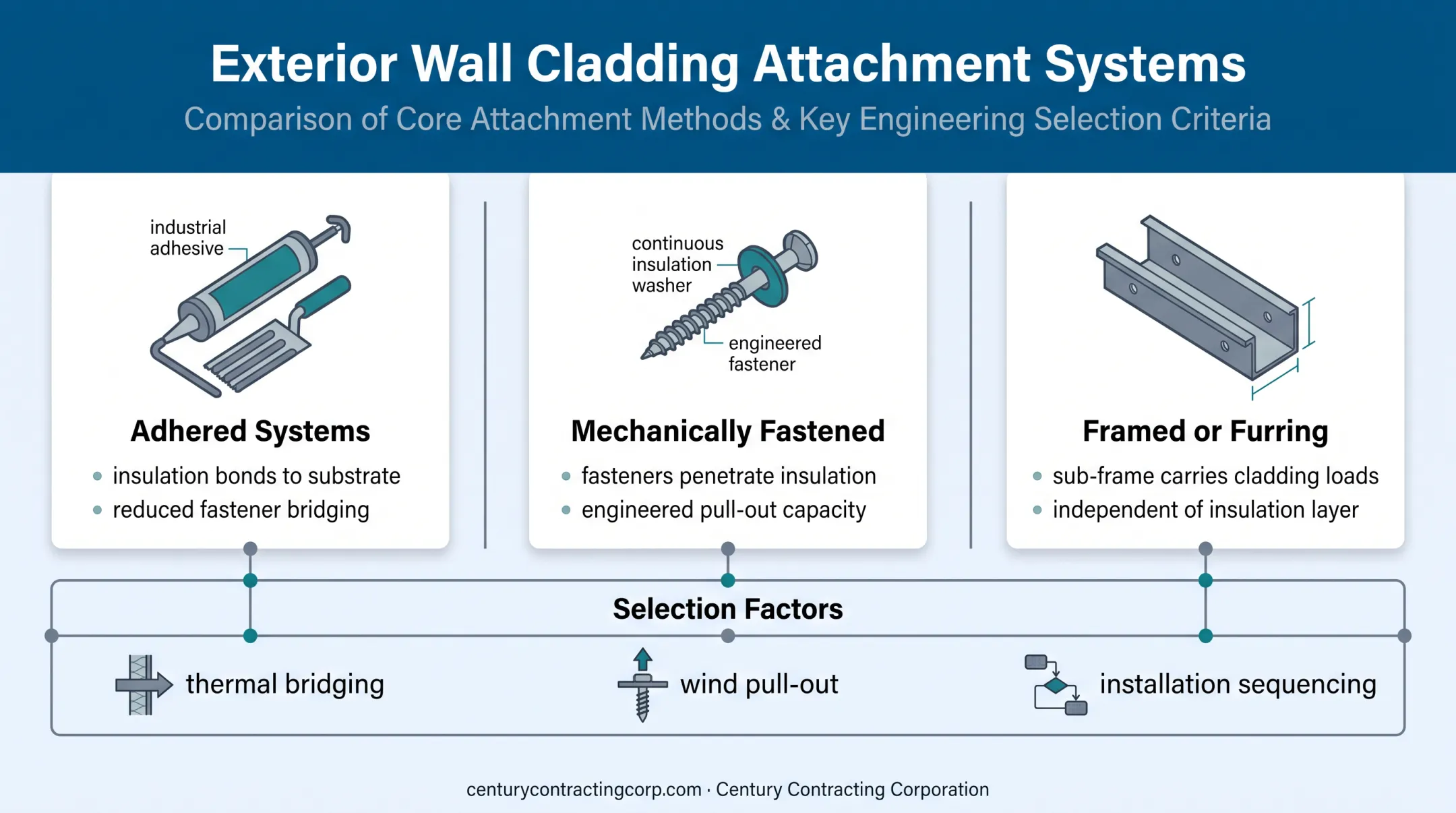

Attachment Methods
Three attachment approaches shape performance differently:
- Adhered systems — insulation board bonds directly to the substrate with adhesive
- Mechanically fastened systems — fasteners penetrate through insulation into structural backing
- Framed or furring-supported systems — a sub-frame carries cladding loads independent of the insulation layer
The method you choose affects thermal bridging at fastener points, wind pull-out capacity, installation sequencing, and how inspections get scheduled.
Cladding weight and insulation thickness drive fastener design together. Heavier claddings like stone veneer or fiber-cement panels need engineered fastening schedules, not generic spacing tables. The 2024 IBC addresses wall coverings attached through foam-plastic sheathing directly. Manufacturers also publish project-specific engineering tables for approved assemblies, so confirm which schedule applies to your specified system.
Fastening gets the cladding on the wall. Transitions and penetrations decide whether water and air stay out once it is there.
Critical Transitions and Penetrations
Every wall has weak points where water wants to go. Address these systematically:
- Windows and doors — flashing, sill drainage, and perimeter sealant must tie into the wall's control layers
- Rooflines, parapets, foundations, and floor lines — keep insulation continuous and block water behind the cladding
- Pipes, louvers, lights, and signage — use approved supports that preserve air, water, and thermal continuity
The 2024 IBC exterior walls chapter requires a water-resistive barrier behind exterior veneer along with a defined path for water that gets past the cladding to exit the wall. Flashing at these junctions is a required drainage detail, not optional trim.
Movement Accommodation
Buildings move. Materials expand and contract at different rates. Control joints, expansion joints, deflection joints, and dissimilar-material transitions need sealants rated for the expected movement range, or gaps open and water finds a path in.
Pre-Installation Coordination Checklist
Before crews mobilize, lock down the following:
- Shop drawings are approved by the design team
- Substrate is ready and inspected
- All materials across the assembly are compatible
- A mock-up or sample panel has been reviewed
- Sequencing accounts for weather windows
- Inspection hold points are scheduled, not an afterthought
Choosing the Right Cladding and Installation Approach
No single cladding wins every project. The right choice depends on substrate conditions, building height, exposure, and budget.
| Cladding Type | Strengths | Key Considerations |
|---|---|---|
| EIFS | Lightweight, design-flexible, integrates continuous insulation (CI) and drainage | Requires complete, approved system components—no mixing manufacturers |
| Stucco | Versatile appearance, proven track record | Depends on correct reinforcement, lath, joints, and curing time |
| Stone or masonry veneer | Substantial, premium appearance | Heavier load; needs engineered anchors, flashing, and movement joints |
| Metal, fiber-cement, wood, or composite panels | Varied aesthetics, often rainscreen-ready | Typically needs designed sub-framing and ventilated cavity |
Retrofit vs. New Construction
New construction lets the design team coordinate the wall assembly, openings, structure, and cladding supports before anything gets installed. Everything lines up by design.
Retrofits rarely offer that luxury. Existing substrates may show moisture damage, cracking, delamination, corrosion, or uneven surfaces. Before specifying a new cladding system over an existing wall, evaluate:
- Fastener pull-out capacity in the existing substrate
- Compatibility between old and new materials
- Whether selective demolition or added structural support is needed
- Occupied-building protection during construction
A Practical Decision Framework
Weigh these factors together, not in isolation:
- Building height and wind exposure
- Local climate, fire, and code requirements
- Target R-value and cladding weight
- Maintenance expectations, budget, and schedule
- Architectural intent
Unusual substrates, heavy cladding, high-rises, high-wind exposure, or complex geometry call for manufacturer-approved assemblies and project-specific engineering. Skip generic details pulled from an unrelated job.
Commercial Design and Code Checklist
Commercial wall assemblies must meet the adopted International Building Code, International Energy Conservation Code, local amendments, fire regulations, and project-specific specifications. Always verify the current editions with your authority having jurisdiction. Code cycles and local amendments shift.
Fire Performance Documentation
Review the complete wall assembly, not just individual components.

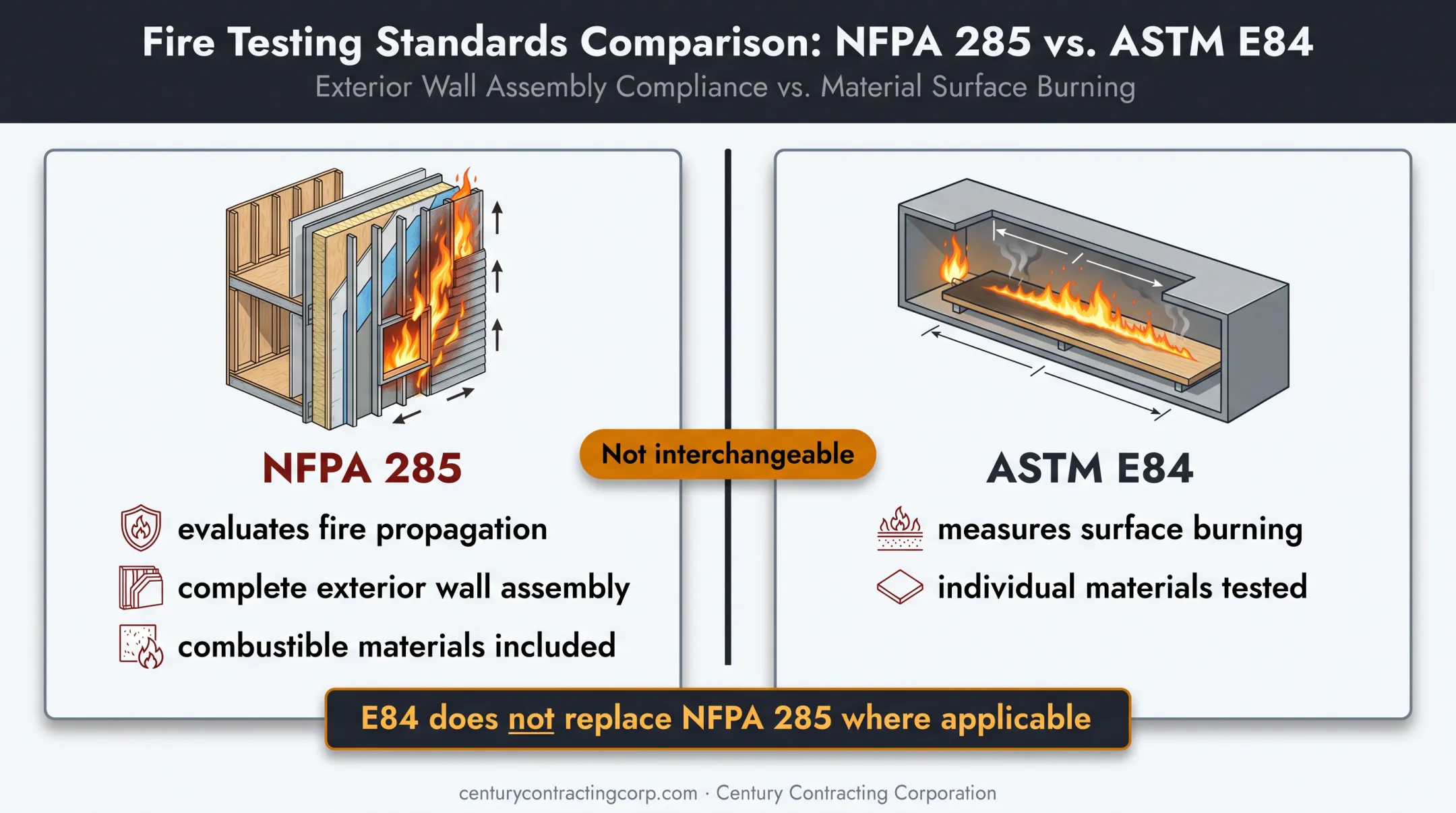

NFPA 285 evaluates fire propagation through an exterior wall assembly that contains combustible materials. ASTM E84 measures surface-burning characteristics of individual materials.
These tests are not interchangeable. A material's E84 rating does not replace assembly-level NFPA 285 evidence where that provision applies.
Structural and Wind-Load Coordination
Confirm:
- Substrate capacity supports the specified cladding weight
- Fasteners are engineered for project-specific wind and dead loads
- Movement and seismic considerations are addressed where applicable
- Attachment design has engineering sign-off, not just manufacturer defaults
Documentation Checklist
Keep these on hand throughout the project:
- System manufacturer literature and product data
- Safety data sheets
- Approved shop drawings and details
- Samples with color and finish sign-off
- Warranties and inspection records
- Maintenance requirements
A representative mock-up or sample panel, reviewed before full production starts, confirms appearance, transitions, workmanship, and drainage details while mistakes are still cheap to fix.
Selecting a Qualified Exterior Wall Contractor
Before hiring, ask prospective installers:
- Which EIFS, stucco, stone, air-barrier, or panel systems are they certified or approved to install?
- Can they provide comparable commercial project references?
- How do they manage substrate prep, sequencing, weather protection, inspections, and closeout documentation?
- What warranty, safety procedures, and project-management structure come with the bid?
The AWCI EIFSmart Contractor Seal requires a certified management employee, a certified foreman on every project, and at least 40% AWCI-certified EIFS field personnel per crew. That's a useful screening tool, but verify the actual crew assigned to your job, not just the company's general credential.
An installer who coordinates with the architect, general contractor, manufacturer, and other envelope trades before work begins catches problems that an isolated finish-trade mentality misses entirely.
Those same checks separate a finish-only crew from a contractor who can own the wall assembly. Century Contracting Corporation, based in Lorton, Virginia, has worked across the Mid-Atlantic for more than 30 years and completed over 3,000 projects.
Credentials that map to the questions above include:
- AWCI EIFSmart-certified workforce
- Manufacturer certifications from Dryvit, STO, Senergy, Parex, and Finestone
- Work across EIFS, stucco, stone veneer, air and weather barriers, and exterior wall panels
Each project gets an assigned project manager, superintendent, and foreman accountable for schedule, safety, and workmanship, backed by a standard two-year installation warranty. General contractors, architects, developers, and property managers evaluating an exterior wall scope can request a project discussion or bid.
All system recommendations remain subject to project drawings, specifications, manufacturer requirements, structural engineering, and local code review—no exterior wall system should be specified or installed without that verification.
Frequently Asked Questions
What is cladding in insulation?
Cladding is the protective, decorative exterior layer installed over insulation, which reduces heat transfer. Common examples include EIFS, stucco, stone veneer, metal panels, and fiber cement.
Can you put insulation behind cladding?
Yes, exterior insulation is commonly installed behind cladding. The exact arrangement depends on the wall substrate, cladding type, drainage and air-barrier design, attachment method, fire requirements, and approved manufacturer or engineered details.
What's the difference between EIFS and traditional stucco?
EIFS integrates continuous insulation, reinforcement, and finish into one system, often with built-in drainage. Traditional stucco is a cement-based plaster applied over lath and requires a separately designed insulation and moisture-control strategy.
Do commercial buildings require continuous insulation?
Most commercial projects follow IECC assembly U-factor requirements, which favor continuous insulation for reducing thermal bridging. The specific requirement depends on climate zone, building type, and the adopted code edition in your jurisdiction.
