Many commercial projects run into trouble here. Sealant gets specified generically, installed over dirty or unprimed surfaces, or added in the field where no joint was designed. The leaks, staining, and repeat repairs show up later.
This guide is for general contractors, architects, property managers, and building owners. It covers sealant types, joint locations, crack evaluation, installation practices, and maintenance.
Key Takeaways
- The right sealant depends on the wall system, substrates, movement, exposure, paintability, and manufacturer approvals.
- Openings, penetrations, dissimilar materials, and movement joints are the usual caulk locations.
- A designed joint and a random crack are different repair conditions.
- Prep, joint geometry, tooling, and inspection matter as much as chemistry.
Why Caulking Matters for EIFS and Stucco
The role of sealant in the building envelope
A continuous, bonded sealant joint limits air and moisture infiltration at transitions. Sto identifies sealants as waterproofing at dissimilar-material interfaces and wall joints. Sealants also accommodate thermal expansion, contraction, and minor movement while keeping the exterior weather-resistant.
Missing or failed caulk can contribute to:
- Leaks and interior staining
- Loss of adhesion
- Deterioration behind the cladding
- Repairs that keep coming back
Caulk is only one possible cause. Engineering firm SGH lists cracks, failed sealants, poor details, and fastener holes as separate water-entry paths. Sealant is one part of the water-management system, not all of it.
EIFS and stucco are not interchangeable assemblies
The two assemblies handle water and movement differently.
| Assembly | Typical configuration |
|---|---|
| EIFS | Finish, fiberglass-mesh-reinforced base coat, rigid insulation, adhesive or mechanical attachment, substrate. Barrier EIFS relies on its outer surface; drainage EIFS adds a drainage plane behind the insulation. |
| Three-coat stucco | Scratch, brown, and finish coats over lath, with a water-resistive barrier and sheathing. Flashings, weep screeds, and control joints stay important. |
| One-coat stucco | Proprietary cementitious basecoat, roughly 3/8 to 1/2 inch, over lath and sheathing. Follow the evaluated system's instructions. |
"Regular stucco" can mean several cementitious assemblies, so identify the existing system before choosing a sealant or repair method. The sealant must also suit the whole assembly: finish, reinforced base coat, air and water-resistive barrier, windows, flashings, and adjacent materials.
Where to Caulk on EIFS and Stucco
Common perimeter and transition locations
Typical sealant locations include:
- Window and door frames
- Service penetrations, vents, louvers, and fixtures
- Floor lines in multilevel wood-frame construction
- Transitions to concrete, masonry, metal, wood, fiber cement, stone, siding, and roofing components
Follow the drawings and the system manufacturer's details rather than adding joints arbitrarily in the field. Dimensions vary by manufacturer.
The EIFS industry's technical bulletin calls 3/4 inch a common joint width, not a universal minimum. StoTherm ci GPS specifies a 1/2-inch minimum at perimeter joints.

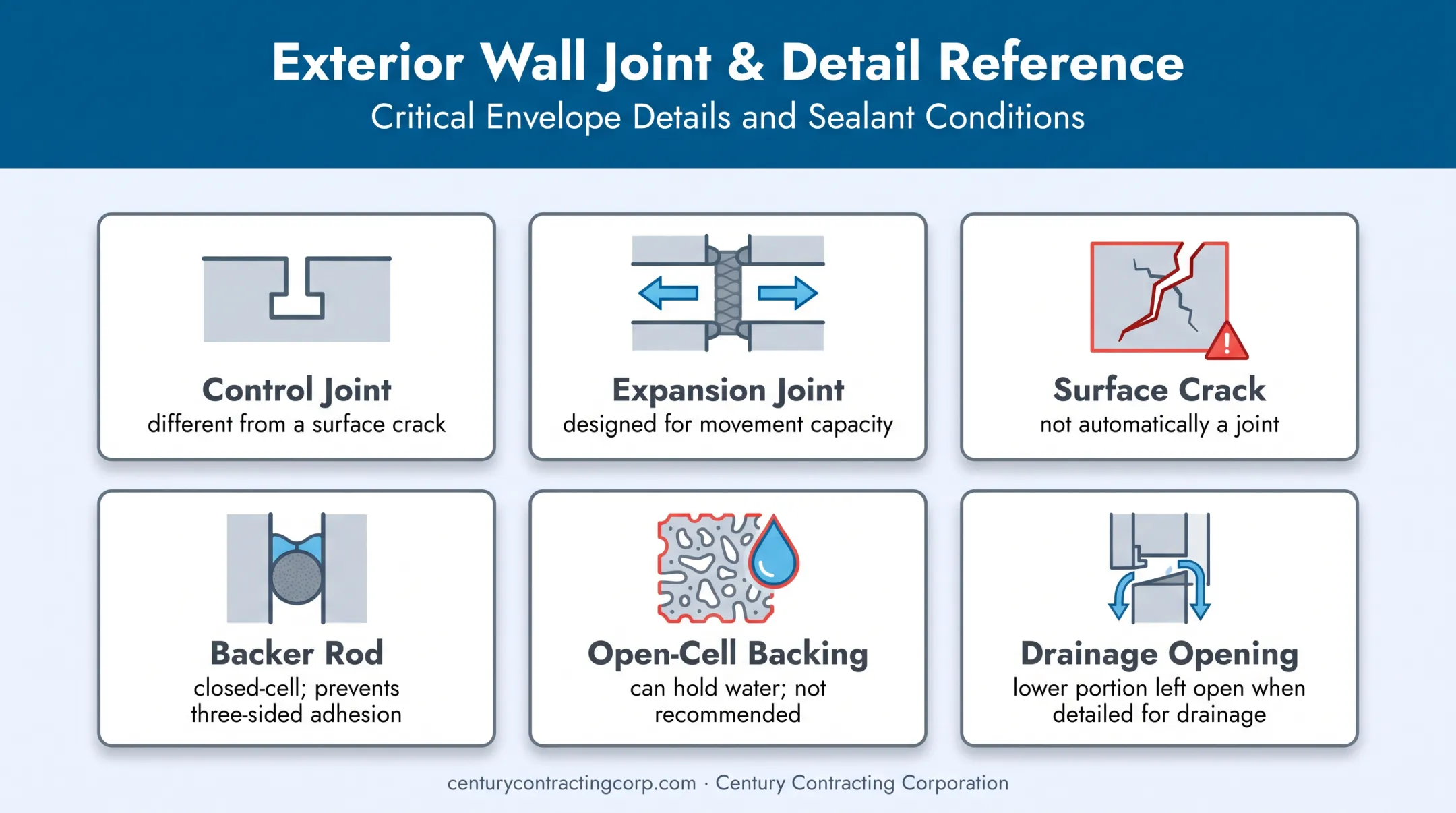

Control joints, expansion joints, and system transitions
Stucco control joints and EIFS expansion joints are different details, and neither is a surface crack. Their purpose, movement capacity, and sealant configuration differ. Check the project details for terminations, changes in plane, and places where the wall meets another assembly.
Backing matters too. Closed-cell backer rod or bond-breaker tape creates the intended joint shape and prevents three-sided adhesion. Open-cell backing can hold water and isn't recommended.
Not every opening is a caulking location. In some drainage details, such as a foam-over-control-joint detail, the lower portion is left open on purpose so water can drain.
Cracks and failed joints
Caulk may suit a non-structural stucco crack or a failed joint, but evaluate the crack first. The Portland Cement Association distinguishes static from moving cracks. Moving cracks may be routed and sealed, with reservoir width set by movement, sealant flexibility, and manufacturer input. There is no universal width cutoff.
Warning signs that it isn't a caulking job:
- Recurring or widening cracks
- Displaced or delaminated surfaces
- Soft or damaged material
- Extensive staining
- Evidence of water behind the cladding
Localized sealant replacement fixes a sealant problem. Moisture investigation, recoating, or wall remediation fixes the rest.
How to Choose the Right Caulk or Sealant
Comparing common sealant chemistries
| Chemistry | Key characteristics |
|---|---|
| Polyurethane | Pecora Dynatrol II: two-part, low-modulus, EIFS use, ASTM C920 Class 50. Paintable after 72 hours; pretest the paint. |
| Silicone | Pecora 890NST: ultra-low modulus, +100/-50% movement in properly designed joints. Not for painting afterward; needs the specified EIFS primer. |
| STPE/hybrid | StoSeal STPE is low-modulus and nonsag. Sika 510 AM50 is Class 50 and overpaintable with most paints. Verify against your system. |
| Acrylic latex | Used for some stucco cracks, but cure shrinkage and limited cyclic movement capacity restrict exterior joint use. |
Don't default to general-purpose interior acrylic caulk on exterior EIFS or stucco joints. Use it only where the product and application are specifically approved.
Higher-modulus sealants put more stress on the EIFS bond line at the same elongation, so EIMA calls for input from both the EIFS and sealant manufacturers. Century Contracting brings that coordination as a certified applicator for Dryvit, STO, Senergy, Parex, and other EIFS brands, with Pecora as a manufacturer partner for sealants.
Project conditions that drive the choice
Evaluate these before picking a product:
- Substrates being joined
- Expected movement
- Rain, sun, temperature swings, and freeze-thaw exposure
- Building height and the cost of water entry
- Color, texture, sheen, and whether the joint will be painted
- Primer needs, cure conditions, application temperature, and VOC limits
Manufacturer and system compatibility
Manufacturer documents come first. Dryvit's application instructions, for example, require a prepared base coat (Color Prime or Demandit Smooth) dried at least 48 hours before sealant primer and sealant.
Parex limits some approved products to perimeter joints, not EIFS-to-EIFS joints, and doesn't permit bonding to its finish. Brand details differ.
When a sealant touches several materials or an unfamiliar finish, confirm compatibility through submittals and a mockup or adhesion test. An approved product still needs the approved joint design and procedure.
Proper Caulking Installation and Inspection
Preparing the joint
- Remove failed sealant, dirt, dust, coatings, efflorescence, and release agents.
- Confirm the substrate is sound and appropriately dry. Repair deteriorated EIFS, delaminated stucco, active leaks, and damaged flashing first.
- Verify joint dimensions, backer or bond-breaker needs, primer, and masking.

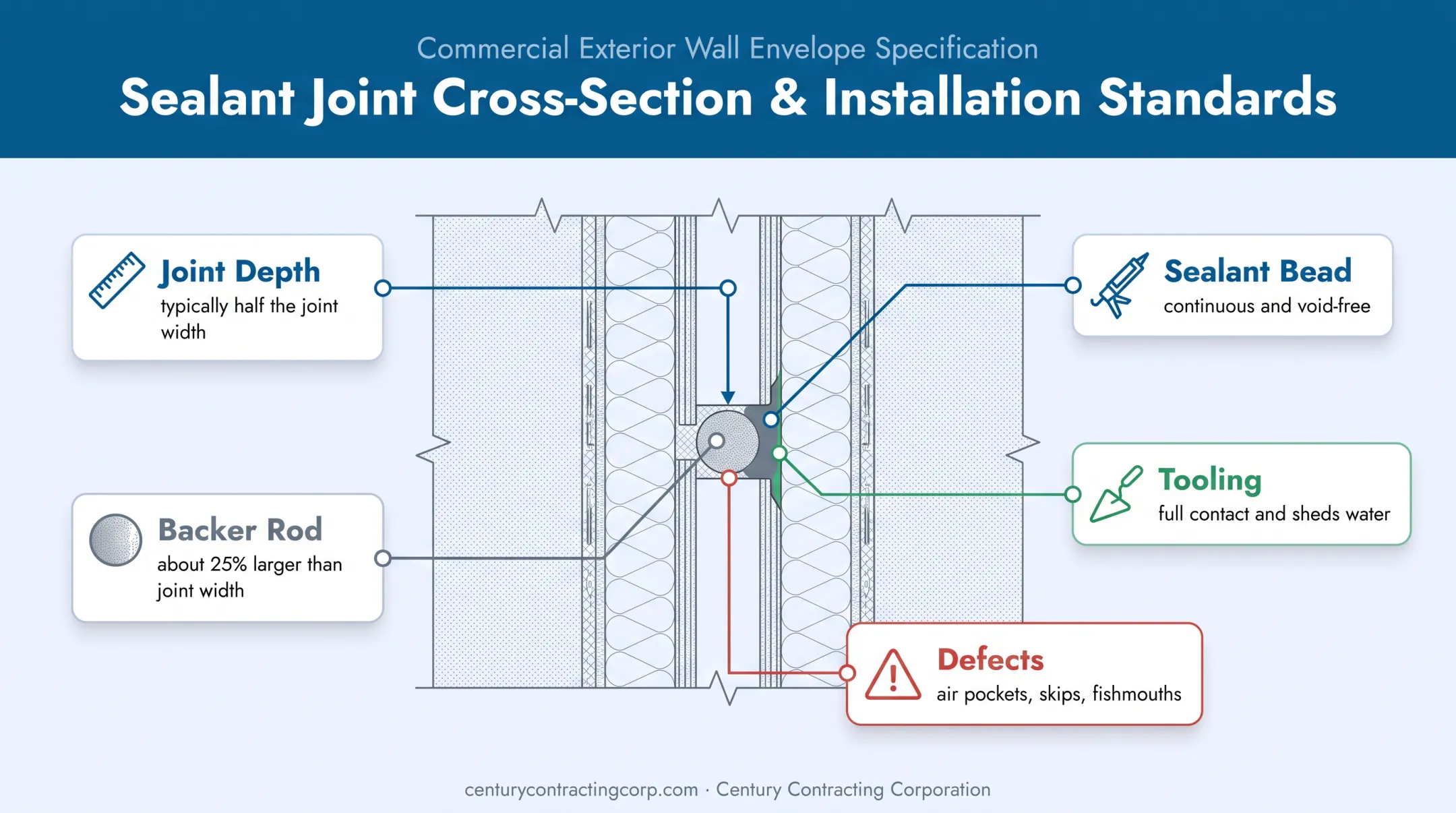

EIMA guidance gives typical depth as half the width, with most sealants performing poorly below 1/4 inch or above 1/2 inch of depth. Always follow product-specific limits. Backer rod is typically about 25% larger in diameter than the joint width.
Applying and tooling
Install a continuous, void-free bead at the right depth, then tool it to make full contact and shed water without smearing the texture. Senergy's repair bulletin advises tooling against the backing and substrate and not using liquid tooling agents.
Watch for:
- Air pockets, skips, and fishmouths
- Contamination and premature skinning
- Three-sided adhesion (bond to both joint faces and the back)
Temperature limits are product-specific. Sika 510 AM50 applies at 41 to 104°F; Dynatrol II at 20 to 120°F. Follow the data sheet, protect the cure, and sequence sealant with painting and finish work.
Integrating sealant with the wall system
Perimeter caulking must tie into window, door, flashing, and air and weather barrier details, not stop at the face of the cladding. When EIFS or stucco crews, window installers, and other trades work out of sequence, those ties break and leave discontinuities. Document approved materials, joint locations, prep, mockups, and field changes for closeout and future maintenance.
Quality control and ongoing inspection
Inspect joints for:
- Adhesion, continuity, and profile
- Edge contact, debonding, and splitting
- Shrinkage, discoloration, and dirt buildup
- Damage to adjacent finish
Use the manufacturer's field adhesion procedure rather than one universal test. Parex, for instance, specifies tests every 100 linear feet in the first 1,000 LF, then at set intervals; that schedule applies only to Parex.
Add sealant to recurring exterior inspections and schedule repairs by observed condition, exposure, and the owner's maintenance plan, not a fixed interval.
Commercial Project Planning and When to Hire a Specialist
New construction and major renovations
Specifications and submittals should name:
- Sealant type, color, and substrates
- Joint dimensions, primers, and backer materials
- Mockups, sequencing, testing, and warranty documentation
STO specs call for a compatibility certificate, adhesion data, and field adhesion testing.

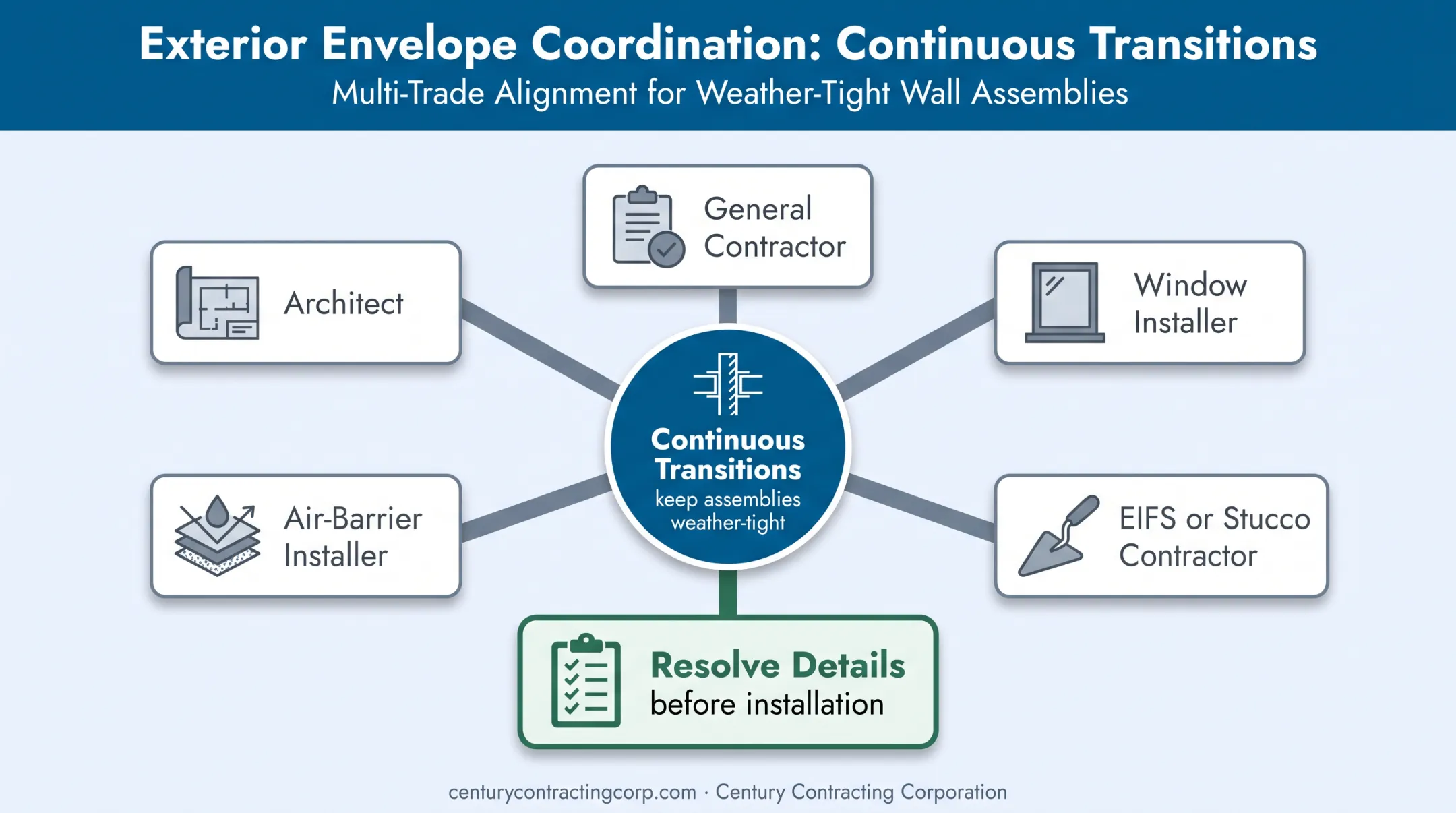

Coordinate the architect, GC, window installer, air-barrier installer, and EIFS or stucco contractor so transitions stay continuous. Resolve ambiguous details before installation, especially where EIFS or stucco meets metal, masonry, concrete, stone, windows, roofing, or wall panels.
Evaluating existing commercial buildings
Request an assessment if you see:
- Split or missing sealant
- Gaps at openings
- Recurring cracks or staining
- Interior leaks
- Repairs that keep failing
A qualified contractor can tell whether recaulking is enough or whether the building needs façade repair, moisture investigation, recoating, or flashing work.
Century Contracting's commercial exterior wall capabilities
Century Contracting Corporation is a commercial contractor that installs EIFS, stucco, air and weather barriers, and exterior wall panels. Its credentials include:
- More than 30 years in commercial exterior wall contracting
- A workforce of more than 100 AWCI EIFSmart-certified workers
- Dryvit, STO, Senergy, Parex, and other major EIFS brand certifications
- An assigned project manager, superintendent, and foreman on each project
- A standard two-year installation warranty
Commercial clients in the Mid-Atlantic can contact Century Contracting about EIFS and stucco work, including scoping and bidding.
Frequently Asked Questions
What are the differences between synthetic stucco and regular stucco?
EIFS uses insulation and a reinforced base coat under a finish. Traditional stucco is a cement-plaster assembly over lath. The system type affects sealant choice and repair method.
What caulk to use on stucco cracks?
Choose sealant based on crack movement, substrate condition, exposure, paintability, and manufacturer approval. Significant or recurring cracks need professional evaluation before any sealant goes on.
Where is caulking typically required on EIFS?
Around openings and penetrations, at dissimilar-material transitions, and at expansion or control joints. Follow the locations in the system details.
Can silicone caulk be painted on stucco?
Many silicones can't be. Pecora 890NST, for example, isn't intended for painting afterward. Check the data sheet, and choose a compatible paintable product if the finish needs coating.
How should stucco be prepared before caulking?
Remove failed sealant and contaminants, repair damaged substrate, and let it dry. Then install backer or primer as required and follow the manufacturer's instructions.
How often should EIFS and stucco caulking be inspected or replaced?
Frequency depends on product, exposure, movement, installation quality, and condition. Neither Dryvit nor Sto sets a fixed interval; both call for regular inspection, which commercial owners should build into exterior maintenance.
