A wall assembly's real thermal performance depends on far more than the insulation's rated R-value. Material type, thickness, continuity across the facade, air and moisture control layers, thermal bridging at fasteners and transitions, and installation quality all factor into how a wall actually behaves once it's built.
This article breaks down EIFS insulation types and their R-value ranges, the real-world factors that shift performance, how to specify and validate R-value claims, and the misconceptions that trip up even experienced project teams.
Key Takeaways
- EIFS places insulation outside the structural wall, cutting thermal bridging compared with cavity-only insulation between studs
- R-value shifts with insulation material, density, thickness, test temperature, and the specific rated system
- Whole-wall performance depends on the full assembly—barriers, drainage, insulation, joints, and penetrations—not insulation alone
- Choosing the right system means balancing thermal performance against moisture control, fire rating, impact resistance, and code requirements
What EIFS Insulation Systems and R-Value Represent
EIFS, short for Exterior Insulation and Finish System, is a non-load-bearing cladding assembly installed over an approved substrate or sheathing. It is a coordinated set of layers—not one product—with each layer handling a specific job.
R-value measures resistance to heat flow. A higher number means greater resistance, but only under the specific conditions used for testing. Insulation thickness and material type drive the nominal R-value, though that figure should always come from current manufacturer technical data, not a generic assumption about "foam board" performance.
The Layers That Make Up an EIFS Wall
Each component in an EIFS assembly plays a distinct role:
- Water-resistive barrier and air barrier – manage bulk water and uncontrolled air movement behind the cladding
- Drainage plane or drainage features – give incidental moisture a path out of the wall
- EPS, GPS, XPS, or mineral wool insulation – supplies most of the system's thermal resistance
- Reinforcing mesh, base coat, and finish coat – protect the insulation while providing impact resistance, weather protection, texture, and color
Nominal Versus Whole-Wall R-Value
Three distinct numbers often get blurred together:
- Nominal insulation R-value – the board's rated resistance per inch, tested under lab conditions
- Effective whole-wall R-value – accounts for framing, fasteners, and other real-world details that interrupt the insulation layer
- Code-compliance calculation – the figure a jurisdiction's energy code actually requires for the specific wall type and climate zone
Fasteners, window and door openings, parapets, and interface details all reduce assembly performance below the insulation's nominal rating. EIFS R-value functions as a design and specification parameter. Alone, it does not guarantee energy savings or interior comfort once the building is occupied.
The Range of EIFS R-Value and the Factors That Influence It
There's no single number that describes "EIFS R-value." It's governed by the material selected, the thickness specified, the rated system's test conditions, climate exposure, and how well the assembly is installed.
Nominal R-Value by Insulation Type
Manufacturer data gives the clearest picture of per-inch performance, but figures vary by brand and product line.
Dryvit's 2025 specification lists EPS at a minimum R-3.60 per inch at 75°F (rising to R-4.00 per inch at 40°F), while its GPS board is rated at R-4.70 per inch at 75°F, according to Dryvit's EPS/GPS insulation board specification.
Here's how the four common EIFS insulation options compare on the properties that actually matter for selection:
| Insulation | Thermal performance | Moisture behavior | Notable trade-offs |
|---|---|---|---|
| EPS | R-3.60–R-4.00 per inch (temp-dependent) | Moderate permeability | Supports decorative shaping; widely available |
| GPS | R-4.70 per inch at 75°F | Semi-permeable | Thinner profile for equal R-value |
| XPS | Roughly R-4.6–R-5.0 per inch (product-dependent) | Lower permeability | Considered where moisture exposure is higher |
| Mineral wool | Around R-4 per inch (product-dependent) | High permeability, non-combustible | Chosen for fire, acoustic, or impact priorities |
EPS remains the most common EIFS insulation because it's cost-effective and easy to shape for decorative details. GPS can hit a similar or higher R-value in a thinner board, which matters when depth is constrained at window returns or roof edges.
XPS and mineral wool get specified for specific conditions: higher moisture exposure, non-combustibility requirements, acoustic priorities, or high-impact locations near grade. Every claim here should be checked against the current product data sheet before it goes into a spec.
Insulation Thickness and Assembly Design
Designers use thickness to hit a target R-value, but thicker boards create their own problems. Added depth changes how flashing, window and door transitions, roof edges, and attachment details need to be designed.

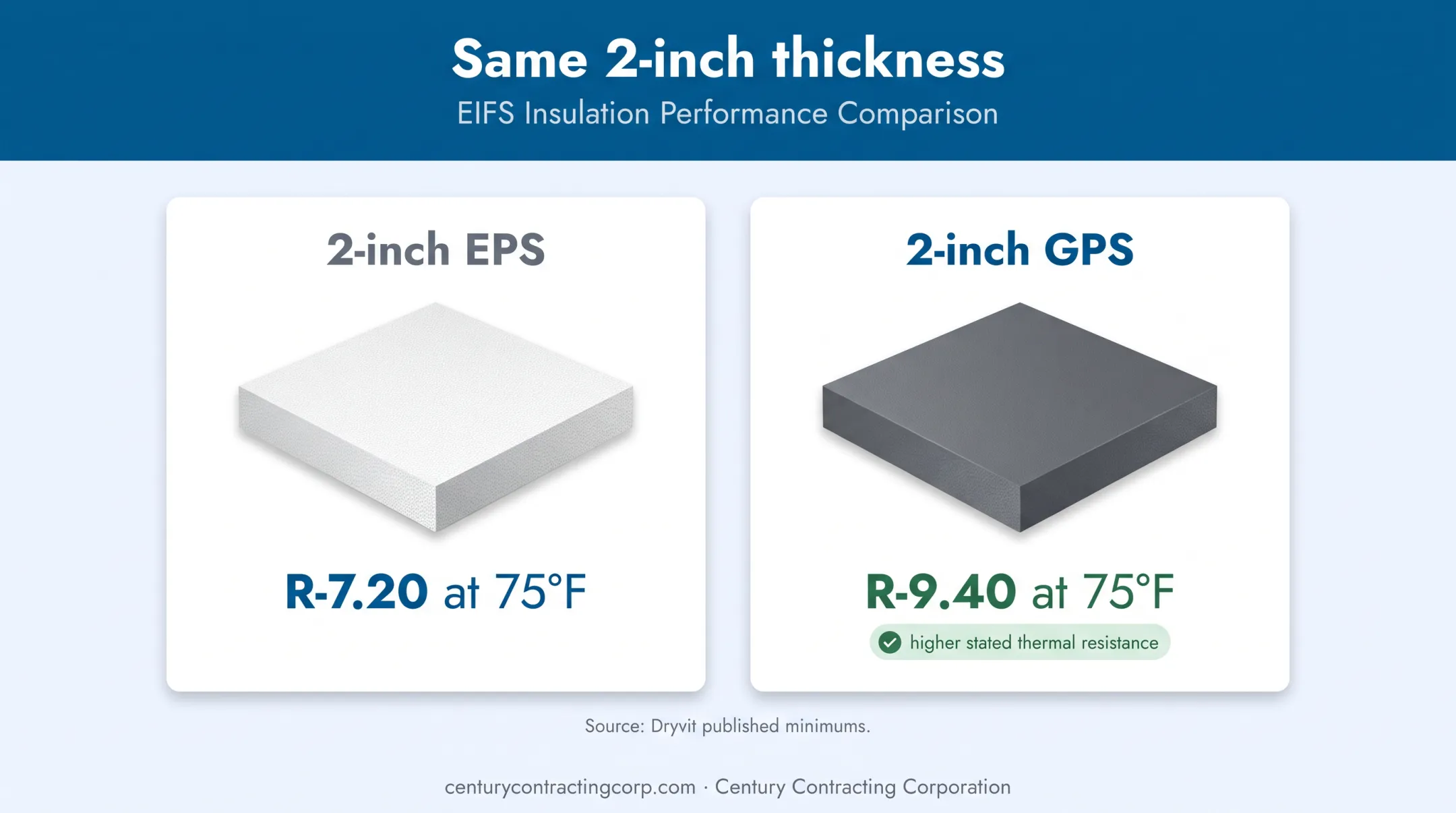

A quick worked example: using Dryvit's published minimums, a 2-inch EPS board at 75°F delivers roughly R-7.20, while a 2-inch GPS board hits about R-9.40. That's a meaningful jump in R-value for the same thickness, though it says nothing about installed cost or how the assembly performs once fasteners, joints, and transitions get added.
Climate, Moisture, and Temperature Effects
R-value figures shift with temperature. Dryvit's own data shows EPS moving from R-3.60 per inch at 75°F to R-4.00 per inch at 40°F, meaning a board's real-world performance depends partly on the climate it's installed in.
Moisture content, drying potential, and interior/exterior temperature differentials all affect how a wall performs day to day. A high R-value doesn't substitute for:
- Proper flashing at every penetration
- Continuous, well-lapped sealant joints
- A functioning drainage plane
- Air-barrier continuity across substrate transitions
Key Technical Properties of EIFS Insulation and How R-Value Is Specified and Validated
R-value is one property among several that need evaluation at the system level, not the material level, when specifying EIFS for a commercial project.
Thermal Continuity and Thermal Bridging
Exterior continuous insulation reduces heat flow through wall framing compared with cavity-only systems, since the insulation layer sits outside the studs rather than between them. That said, penetrations, shelf angles, fasteners, parapets, and balcony connections still create paths for heat to bypass the insulation entirely.
A board's nominal R-value describes the material in isolation. Whole-wall thermal performance accounts for every one of those interruptions, which is why the two numbers rarely match.
Moisture and Vapor Performance
Vapor permeability and water resistance are separate properties from R-value, and they need separate evaluation for the specific climate and wall assembly.
GPS boards tend to run semi-permeable, while mineral wool typically offers high vapor permeability. Those traits come from the insulation type, not from its thermal rating. The insulation, water-resistive barrier, drainage plane, sealants, and substrate all interact to determine how well a wall manages and dries out moisture.
Fire, Impact, and Acoustic Performance
Foam plastic insulation (EPS, GPS, XPS) and mineral wool carry different fire and impact profiles, and neither gets a blanket pass on code compliance just because of the insulation type used. NFPA 285 testing applies to the complete exterior wall assembly, not the insulation board alone.
A mineral-wool EIFS system tested under NFPA 285 can't automatically transfer its fire rating to a different substrate or attachment method. The applicable tested assembly and manufacturer documentation need to match the actual project conditions.
Impact resistance also varies by classification, generally ranging from Standard to Ultra-High categories depending on the finish coat and mesh weight specified.
Specification Documents and Rated Versus Tested Values
Several documents need review before an EIFS spec is finalized:
- Manufacturer data sheets for the specific board and finish
- Approved system specifications and evaluation reports (such as ICC-ES reports)
- Tested assembly details matching the proposed configuration
- Shop drawings showing thickness, attachment, and transition details
- Energy-code calculations for the applicable climate zone
A material's published R-value and a tested wall assembly's performance are two different things. The board figure comes from a lab test on the insulation alone. The assembly figure, when available, comes from testing the complete wall configuration.

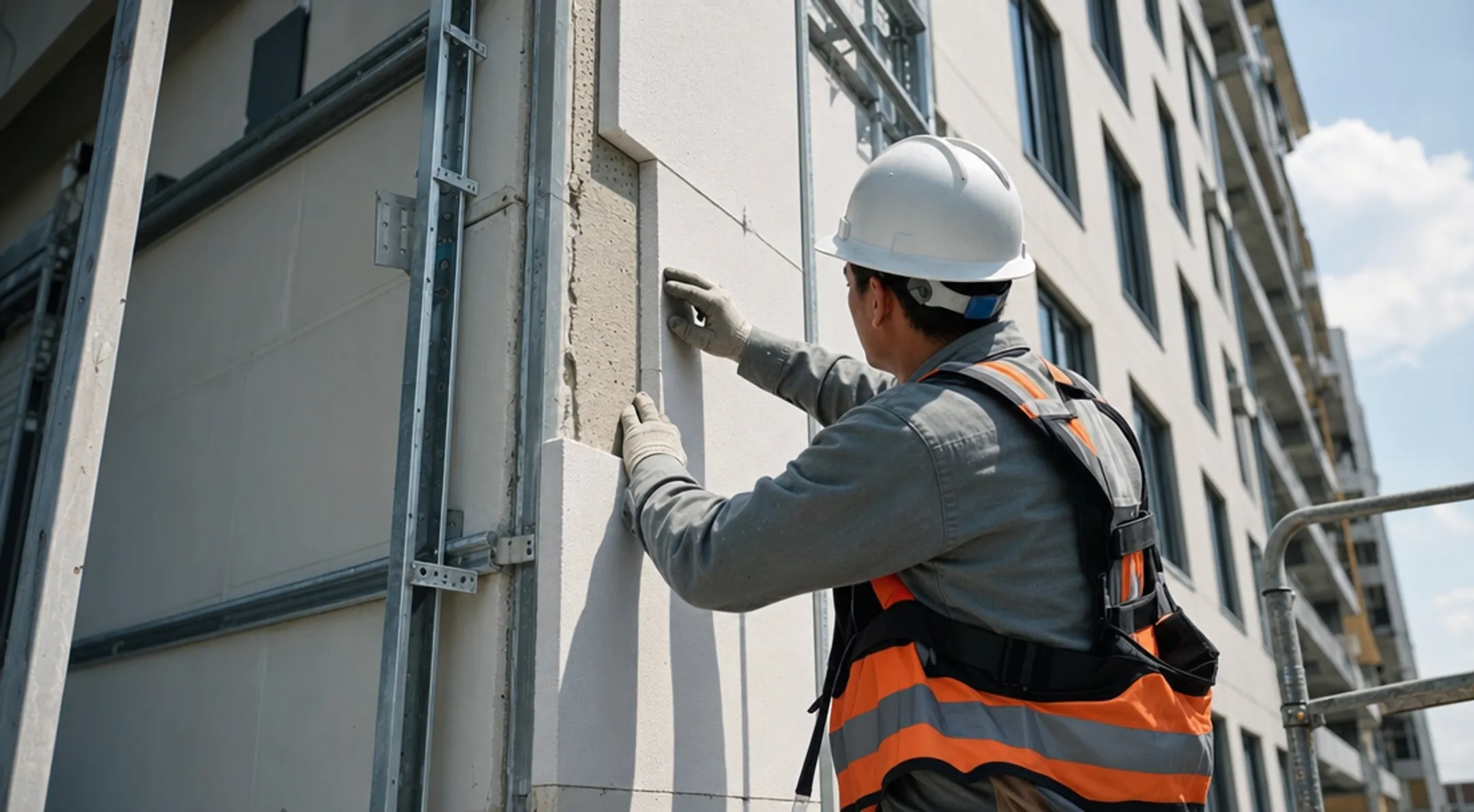

Measurement, Verification, and Installation Quality
Even a well-specified system underperforms if installed poorly. Validation should include:
- Reviewing product data against the approved spec
- Checking board thickness and joint quality in the field
- Verifying substrate preparation before insulation attachment
- Confirming air-barrier and drainage continuity at every transition
- Documenting field inspections at key milestones
Correct adhesive or mechanical attachment, tight board-to-board installation, reinforced detailing at openings, and proper sealant and flashing work all determine whether the specified R-value has any chance of translating into real performance.
This is where installation experience matters as much as the spec itself. Century Contracting Corporation, based in Lorton, Virginia, brings an AWCI EIFSmart-certified workforce and certifications with Dryvit, STO, Senergy, Parex, and other major EIFS brands to commercial projects across the Mid-Atlantic.
Every project gets an assigned project manager, superintendent, and foreman, which matters when a design team's specified assembly must be built exactly as drawn. Coordination between design intent and field execution—not the contractor rewriting engineering requirements—is what closes the gap between a spec sheet's R-value and the building's actual performance.
Implications of Operating Outside the Recommended Range and Common Misinterpretations
Getting the insulation selection or installation wrong creates problems that don't always show up immediately.
Under-insulating or creating gaps reduces thermal performance and raises the risk of condensation or uncomfortable interior surface temperatures near the wall. Even small discontinuities in the insulation layer can create localized cold spots.
Moisture problems often trace back to details, not R-value. Poor drainage, failed sealants, incomplete air-barrier transitions, and improper flashing can all cause water intrusion regardless of how high the insulation's published R-value runs. A wall can have excellent thermal specs and still fail from a leaking window head flashing.
Operating outside approved conditions carries real consequences. Using an insulation type or thickness outside its tested configuration can affect fire performance, dimensional stability, durability, code compliance, and manufacturer warranty coverage. Verify these consequences against the specific system's documentation before deviating from an approved detail.
Two misconceptions come up constantly on commercial projects:
- "Highest R-value per inch is always the best choice." Not necessarily. GPS might beat EPS on R per inch, but cost, vapor permeability, moisture exposure, fire needs, and detailing usually decide the better fit.

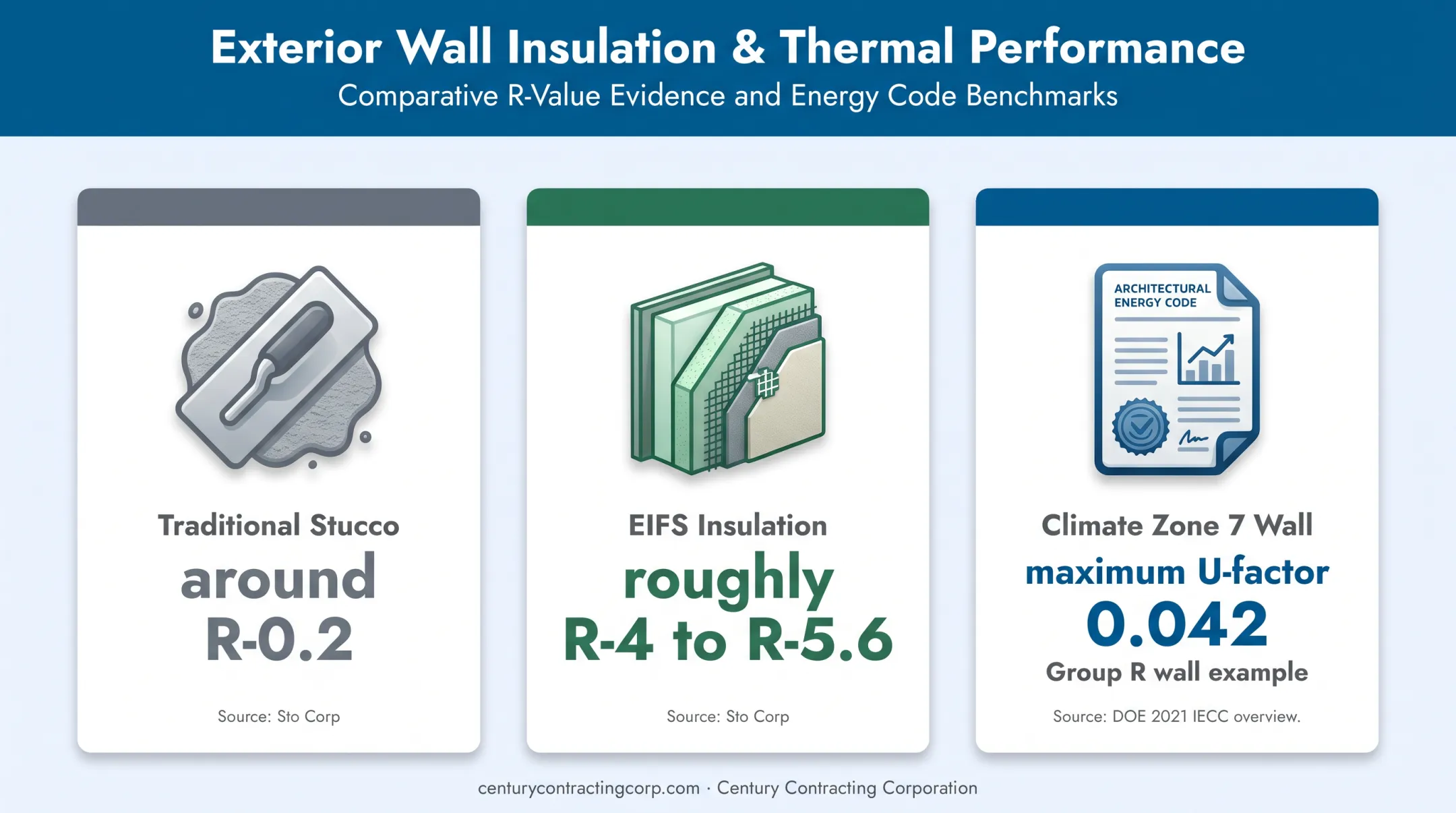

- "EIFS R-value compares directly to stucco R-value." Stucco alone is often cited around R-0.2, versus roughly R-4 to R-5.6 for EIFS insulation layers, per Sto Corp's EIFS versus stucco comparison. Compare the full wall assembly, not the cladding alone.
Those cladding-only comparisons also miss how energy codes actually set wall performance. A 2021 IECC presentation cited a maximum U-factor of 0.042 for a Climate Zone 7 Group R wall example, illustrating how code requirements shift by climate zone and building type rather than applying one nationwide figure, per DOE's 2021 IECC commercial provisions overview.
Conclusion
EIFS R-value is a key design input, but it only tells part of the story. Reliable wall performance depends on the complete system working together:
- Material selection and insulation thickness
- Continuous detailing and moisture management
- Tested assemblies and code review
- Installation quality that matches the spec
For commercial GCs, architects, developers, and property managers handling EIFS scope on a Mid-Atlantic project, Century Contracting Corporation brings over 30 years of installation experience. A large AWCI EIFSmart-certified workforce and manufacturer applicator certifications help turn a specified wall assembly into a finished building that performs as designed.
Frequently Asked Questions
What is the R-value of EIFS?
EIFS R-value is set by insulation type, thickness, and the specific rated product—not a single universal number. Use current manufacturer data and whole-wall calculations for the assembly you are specifying.
What is the typical R-value of EPS foam board?
EPS performance changes with density, product line, thickness, and test temperature. Dryvit's minimum published figure is R-3.60 per inch at 75°F; verify the rated value for the specific EIFS-approved board on the project.
What type of insulation is used for EIFS?
Common options are EPS, GPS, XPS, and mineral wool. Match the product to the project’s thermal, moisture, fire, acoustic, impact, code, and budget requirements.
What is a good R-value for exterior walls?
A good target follows your IECC climate zone, the adopted energy code, building type, and whether the wall uses cavity insulation, continuous insulation, or both. No single R-value fits every U.S. project.
What is the R-value of stucco?
Traditional stucco offers limited insulating value, often cited around R-0.2, compared with roughly R-4 to R-5.6 for EIFS insulation layers. Evaluate the full wall assembly, not the finish coat alone.
How long should EIFS last?
Service life tracks system design, installation quality, exposure, and maintenance such as sealant checks and cleaning. Manufacturers typically call for annual inspections instead of a single fixed lifespan.
